Fluid Dynamics dynaBLEND™ - Liquid Polymer Technology
Knowing the facts behind polymer blending is the first step in understanding the numerous benefits of the dynaBLEND™ technology. Over the years, the spectrum of polymers available has widened and today there are more difficult-to-blend polymers than ever before. This is especially important because some polymer blending systems work well on simple-to-blend polymers, but fail at effectively activating the difficult polymers.
Most popular related searches
turbine flow meter
water control valve
magnetic flow meter
pressure reducing valve
pressure relief valve
polymer blending system
flow meter
solenoid valve
booster pump
water valve

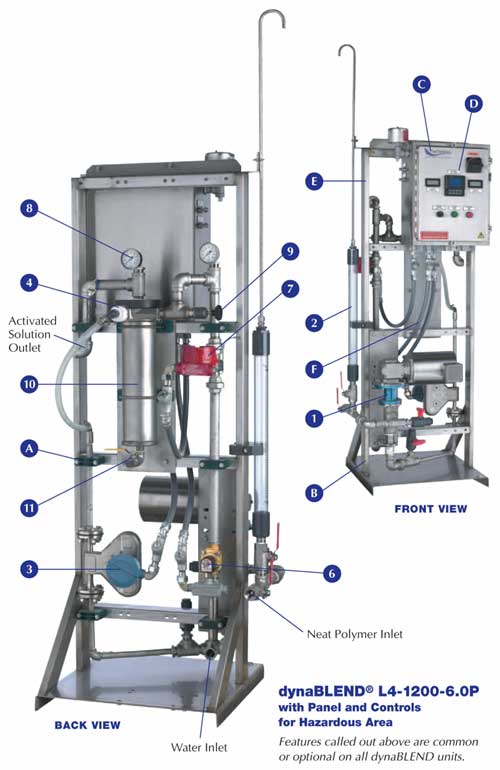

dynaBLEND Conslruclion Features
- All Piping Components Rigidly Mounted to Skid
- Gusseted Uprights for Rigidity
- NEMA 4X Control Panel
- Fluid Dynamics is a UL Certified Panel Shop
- Control Panel at Operator Eye-Level
- Open Frame Design for Ease of Accessibility
- Constructed of 304 SS
- Sealtite for All Power Wiring

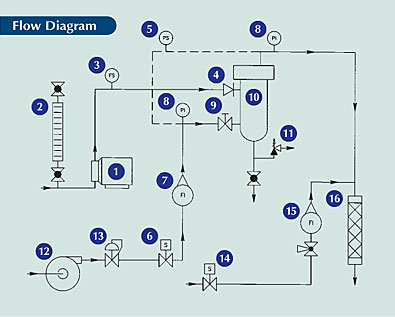

Basic dynaBLEND and Options
- Metering Pump1
- Calibration Column (optional)
- Polymer Flow Measurement (optional)
- Proprietary Design Polymer
- Check Valve
- Differential Pressure Switch (optional)
- Solenoid Valve
- Water Flow Measurement2
- Liquid Filled SS Pressure Gauges
- Variable Orifice Water Control Valve
- dynaBLEND Mixing Chamber
- Pressure Relief Valve
Optional Booster Pump Module
- Booster Pump
- Pressure Reducing Valve
Optional Post Dilution Module
- Solenoid Valve
- Water Flow Measurement2
- Static Mixer
- Can be Diaphragm or Progressing Cavity
- Can be Rotometer, Turbine Flow Meter or Magnetic Flow Meter
