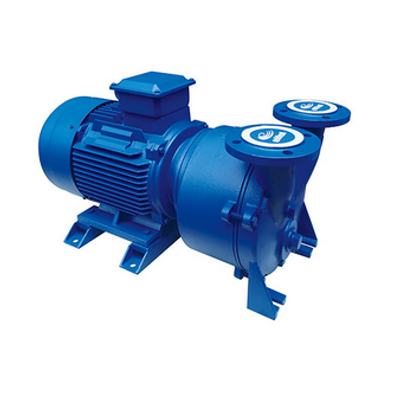

Eifel - Model ELC Series -Liquid Ring Vacuum Pump

1. nearty isothermal compression;
2. oil-free, as no lubrication in the working chamber therefore non-polluting;
3. Capable of handling of nearty all gases and vapours;
4. small quantities of entrained liquid can be handled;
5. easy maintenance and reliable operation;
6. low noise and nearty free from vibration;
7. wide choice of materials, therefore applicable nearty everywhere;
8. shaft not in contact with the medium;
9. protection against cavitation as standard;
10. incorporated dirt drain, no metallic contact of the rotating parts.

Handling and exhausting of dry and humid gases; entrained liquid can be handled during normal duty. The pumps are applied in all fields where a pressure of 33 to 900 mbar must be generated
