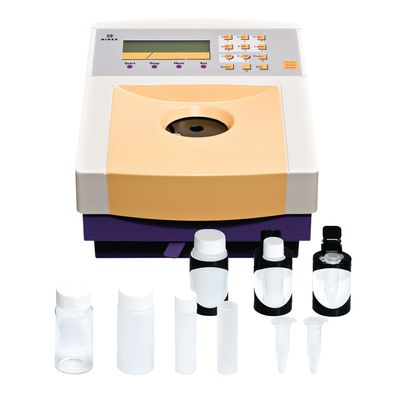

Hidex Triathler - Liquid Scintillation Counter and Gamma Counter
The Hidex Triathler is a single sample counter which provides fast and accurate results for several life science and environmental applications. It can count all radioisotopes including tritium in a variety of sample formats. Due to its very small size and light weight, the Hidex Triathler can be taken into the field to measure samples on the spot. Although small, the Hidex Triathler has many advanced features such as spectrum analysis using a multi-channel analyser (MCA), instant DPM results, single-photon luminescence counting, and optional PC control and data transfer.Easy to use
A keypad allows single key operation for immediate results usign preset protocols for any isotope. Place the vial in the adapter. Close the counting head cap, turn it to the measurement position, and press a selection key to start. Read the results on the display. Attach the Triathler to your PC and you can transfer the data using just a few keystrokes.
Portable
The Hidex Triathler’s small size and light weight make it ideal for personal use on a benchtop or for on-site field/sea measurements.
Flexible
The Hidex Triathler is suitable for just about any beta radiation, gamma radiation or luminescence application and accepts most types of vials and sample formats.
Sophisticated
The Hidex Triathler has advanced features such as a built-in multi-channel analyser, optional alpha-beta separation electronics, and connectivity to a PC for instrument control and data export.
- Main Unit: Steel plate case
- Display: 2 x 16 character LC display
- Keyboard: 16 membrane type push buttons
- Light Detector: A photomultiplier tube
- Microcomputer: Intel 80196NU, 50 MHz clock cycle
- Program Memory: 512 kbytes EPROM
- Non Volatile Memory: 64 kbytes SRAM
- Multichannel Analyser: Dual, Gated, 12 bit linear ADC
- MCA Conversion Time: 700 ns
- Data Output: RS-232 to printer or PC
- PMT Bias Supply: Microcomputer controlled. 0...1300 V
- Power Input: +12 V ±20% DC
- External Power Unit: 12 V DC, 2 A
- Dimensions: 190 (h) x 330 (d) x 250 (w) mm
- Weight: 9 kgs / 19.8 lbs
