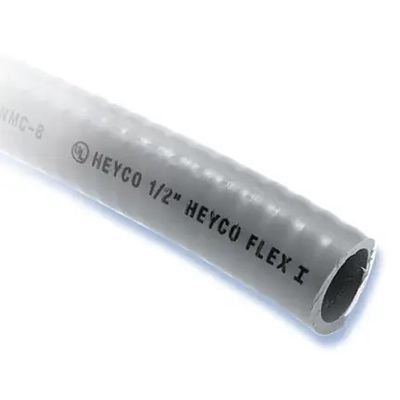

Heyco-Flex - Liquid Tight Conduit
FromHeyco
Smooth inside for easier wire pulling; no hazardous sharp edges or burrs; will not damage conductors. Lightweight and lower installed cost. Integral rigid and flexible PVC construction. Use with nylon Heyco-Flex Connectors; Straight or Snap-in, or Sweep. Also use with NPT Quick Twist Fittings. Straight or Sweep. May also be used with Heyco’s Metallic Fittings for Liquid Tight Conduit: Straight-Thru or 90° Sweep. Resists corrosion, abrasion, oil, water, acid, metal shavings, and rough environments.
Most popular related searches
printing system
HVAC equipment
pump system
refrigerator temperature
acid water
acidic water
HVAC
corrosive water
PVC fitting
- Resists abuse, pull, and crushing.
- Approved for direct burial.
- Sunlight resistant.
- Suitable for indoor/outdoor use: HVAC Equipment, Machine Tools, Marine Equipment, Motors and Controls, Printing Equipment, Pumps, Refrigeration Equipment.
- Temperature ratings:
- 80°C (176°F) DRY
- 70°C (158°F) OIL Resistance
- 60°C (140°F) WET locations
- Passes submersion test of 70 psi.
- Voltage rating: 600V
- Mounting brackets are available.
- Order Part No. 8340, HF-28 Cutting Tool, for cutting Heyco-Flex conduit and tubing cleanly and evenly.
- Material: PVC
- Certifications
- Listed under Underwriters’ Laboratories File E121096
- Certified by Canadian Standard Association File 233010
- Flammability Rating: VW1
- Temperature Range: -.4°F (-18°C) to 167°F (75°C)
