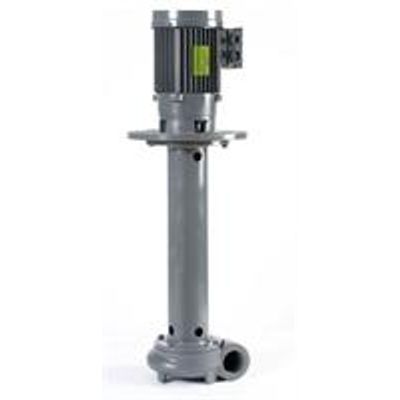

Sacemi - Model IMM 90-100 -Liquids Transferring Pump
They are suitable for transferring liquids containing impurities up to 4 mm in size. Their hydraulic components: impeller and feed screw in cast iron, pump body in steel allow them to be used with water, emulsions and oily substances in general, with a viscosity not exceeding 21 cSt (3° Engel). The temperature of the liquid must not exceed 90°C.
They are commonly used on:
- machine tools
- glass processing machinery
- surface treatment plants
- filtration systems
- spray booths
They are normally installed on a tank with a capacity which is proportional to their flow rate, about 7-8 cm from the bottom. It is important to make sure that the maximum liquid level in the tank is always 5-6 cm lower than the support flange. Should the liquid be particularly dirty, it is advisable to build a compartment tank in order to allow the sludge to deposit before it is sucked by the pump. For different uses, please consult our Technical Office.
