Endress Hauser AG

- Model CA80AM - Ammonium Analyzer System

From

0

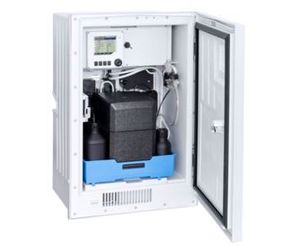

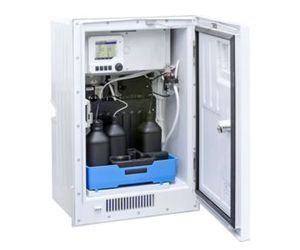

Colorimetric system for online monitoring of water and wastewater treatment. Liquiline System CA80AM offers high-precision ammonium measurement in all critical control points. As member of the Liquiline platform, it enables plug & play and easy upgrade to a measuring station - minimizing the installation effort. Automatic calibration and cleaning as well as the low consumption of reagents save you operating and maintenance costs. Advanced diagnostics with remote access ensure process safety and support you in providing process documentation to the authorities.

  • Fast commissioning and plug & play thanks to Memosens technology and user-friendly operation
  • Easy upgrade of functionality - even to a complete measuring station - simply by adding modules and connecting Memosens sensors
  • Advanced diagnostics with remote access for increased process safety
  • Reduced operating costs through automatic, configurable calibration and cleaning and long reagent shelf life with optional cooling module
  • Compliance with standard colorimetric measuring principle - indophenol blue method - following ISO 7150-1, DIN 38406-5 and GB 7481-87


Liquiline System CA80AM monitors and controls:

  • Inlets of wastewater treatment plants
  • Outlets of wastewater treatment plants for documentation purposes
  • Aeration basins
  • Water treatment
  • Cleaning capacity of municipal and industrial wastewater plants

  • Measuring Principle : Colorimetric
  • Characteristic :
    • Process analyzer for ammonium in aqueous solutions
    • Comply with standard colorimetric measuring principle - indophenol blue method - following ISO 7150-1, DIN 38406-5 and GB 7481-87
  • Size :
    • Cabinet: 793 x 530 x 417 mm, 31.22 x 20.87 x 16.42 in
    • Stand housing : 1693 x 530 x 417 mm, 66.65 x 20.87 x 16.42 in
  • Design :
    • Open design, cabinet and stand housing
    • High-Performance plastic ASA-PC, additional stand coated steel
  • Process temperature : 5 ... 40 °C (41 ... 104 °F)
  • Ambient temperature : 5 ... 40 °C (41 ... 104 °F)
  • Process pressure : at atmospheric pressure, < 0.2 bar absolute
  • Probe rate : min. 5ml/min (0,17 fl.oz/min)
  • Consistency of the probe : low solid content TS < 50 mg/l (ppm)
  • Specials :
    • Easy upgrade to measuring station with up to four digital Memosens sensors
    • Automatic calibration and cleaning
    • User-configurable measuring, cleaning and calibration intervals
    • Optional cooling module for longer reagent shelf life
    • 2 channel version optional
    • User-definable measuring ranges
    • Modular design for easily extensible functionality
    • Digital communication for remote access
  • Application :
    • Monitoring and optimization of the cleaning capacity of municipal and industrial wastewater treatment plants
    • Monitoring of the wastewater treatment plant outlet for documentation purposes
    • Monitoring and optimization of activated sludge basins
  • Power Supply :
    • 100 ... 120 VAC / 200 ... 240 VAC ± 10%
    • 24 VDC ± 10%
    • 50 ± 1 oder 60 ± 1,2 Hz
  • Output :
    • 2x 0/4 ... 20 mA
    • Modbus RS485/TCP (optional)
    • Ethernet (optional)
    • Alarmrelay
  • Input :
    • 1 or 2 measuring channel
    • 1 ... 4 digitale sensor inputs for sensors with Memosens protocol (optional)
  • Measurement range :
    • 0,05 - 20 mg/l NH4-N
    • 0,5 - 50 mg/l NH4-N
    • 1 - 100 mg/l NH4-N
  • Consumables : Reagents and standard solutions CY80AM as well as cleaner CY800 are necessary for the operation. Regular maintenance is done with the parts of the maintenance kit CAV800.
