Endress Hauser AG

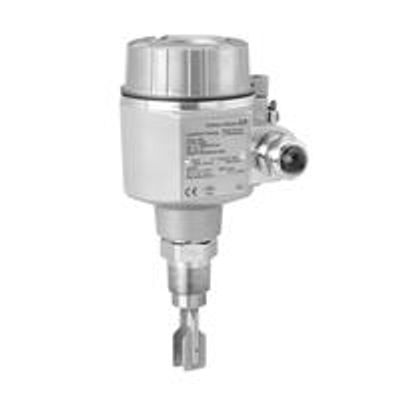

- Model FTL80 - Vibronic Point Level Detection

From

0

Point level switch for liquids for FailSafe overfill prevention. Liquiphant FTL80 is a point level switch for use in hazardous areas with all international certificates. FailSafe overfill prevention in applications with functional safety up to SIL3 with one device. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.

  • Use in safety systems requiring functional safety to SIL3 in accordance with IEC 61508 Ed.2.0/ IEC 61511-1/ISA 84-1 and DIN EN ISO 13849

  • Proof test: proof testing interval up to 12 years, Slave devices tested at the press of a button

  • Permanent self-monitoring/internal redundancy

  • 4-20mA interface (acc. to NAMUR NE 06/NE 43): easy integration via the switching unit (Nivotester FailSafe FTL825) with a two-channel output (safety contacts) and locking function or direct integration into a safety PLC

  • No adjustment: quick, low-cost startup

  • No mechanically moving parts: no maintenance, no wear, long operating life

  • Monitoring of fork for damage, corrosion, build-up and mechanical blocking

Point level switch for liquids up to SIL3.

  • Process connections: Threads and flanges

  • Temperature: -60 to +280°C (-76 to +540°F)

  • Pressure: -1 to +100bar (-14.5 to +1,450psi)

  • Sensor material: 316L, Alloy C

  • International explosion protection certificates, overfill prevention WHG, SIL, marine approvals

  • Measuring principle

    Vibration Liquids

  • Characteristic / Application

    Compact point level switch for MIN and MAX safety applications up to SIL3,
    Dual Sealing/ Second line of defense

    Modular housing concept

  • Specialities

    Outstanding features:
    - permanent LIVE signal monitors function safety

    - failsafe design and

    - high availability of the measuring values

  • Supply / Communication

    2-wire 4...20 mA

  • Ambient temperature

    -60°C...+70°C
    (-76°F...+160°F)

  • Process temperature

    -60°C...+280°C
    (-76°F...+540°F)

  • Process pressure absolute / max. overpressure limit

    Vacuum...100 bar
    (1450 psi)

  • Min. density of medium

    Density from 0.4 g/cm3
    (0.4 SGU)

  • Main wetted parts

    316L,
    Alloy C

  • Process connection

    Flange:

    DN25...DN100

    ASME 1'...4'

    JIS 10K...20K

    Thread:

    G3/4, G1, R3/4,
    R1, MNPT3/4, MNPT1

  • Sensor length

    Compact

  • Communication

    2-wire 4...20 mA

  • Certificates / Approvals

    ATEX, FM, CSA, CSA C/US, IEC Ex, NEPSI

  • Safety approvals

    Overfill prevention WHG

    Leakage

    SIL3

  • Design approvals

    EN 10204-3.1

    NACE MR0175, MR0103

    ASME B31.3

    AD2000

  • Marine approval

    GL/ ABS/ LR/ BV/ DNV

  • Options

    PWIS free

    Pressure tight feed through

    Weather protection

  • Components

    Nivotester FTL825, Transmitter
