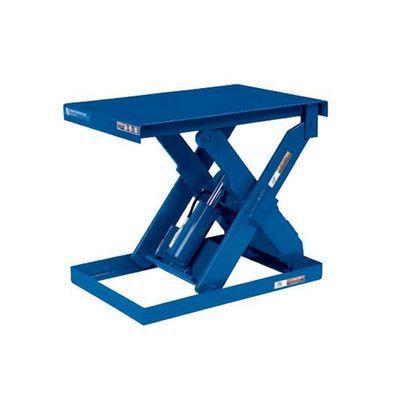

Advance Lifts - Model P-2524 -Llift Table for Single Scissor Units
The P-Series lifts are our most popular series as they fit a wide array of manufacturing applications.
Most popular related searches
- Min. Platform Size: 24 x 36 in.
- Max. Platform Size: 48 x 60 in.
- Max. End Load Capacity 2,500 lbs.
- Max. Side Load Capacity: 2,500 lbs.
- Baseframe Size: 24 x 36 in.
- Lowered Height: 6.5 in.
- Raised Height: 30.5 in.
- Approx. Speed Up: 12 sec.
- Internal Motor: 1.5 HP
- Shipping Weight: 500 lbs.
- All of the controllers are Underwriter Laboratory listed assemblies.
- These units are fully primed and finished with a baked enamel finish.
- The cylinders are machine grade with clear plastic return lines.
- All pressure hoses are double wire braid with JIC fittings.
- The reservoirs are mild steel.
- These units conform to all applicable ANSI codes
