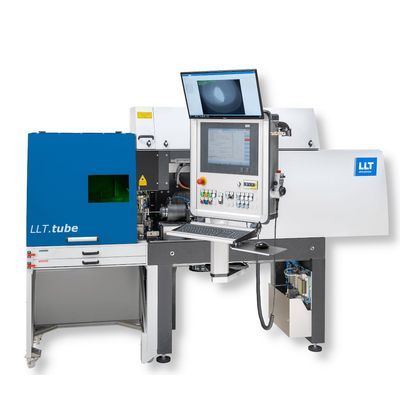

LLT.tube - High Precision Tube Cutting System
Challenges in manufacturing and processing fine or precision tubes are complex. Especially high-tech industries such as medical technology, sensor technology or optics, expect not only high precision but also gentle treatment of sensitive and cost-intensive materials, as in the case of stents or hypotubes. LLT.tube was developed to meet these expectations. Due to the use of an ultrashort pulse laser, the heat-affected zone and the associated thermal stress on the material are minimal, as are the feasible dimensions of the cutting or drilling contours. The material retains the desired properties and residues such as melt are avoided.
- Micro cutting and drilling of fine tubes, cylindrical and 2D components
- Up to ± 3 µm positioning accuracy
- Process area (X, Y, Z): up to 600 mm x 50 mm x 35 mm
- Up to 4 axes for radial and off-axis cutting
- Combined operation of fiber and femtosecond laser
- Tube feeder and wet cutting system
- High-precision laser machining of precision tubes
- Gentle processing of sensitiv and high-cost materials
- Autonomous operation with fully automated component handling
Laser cutting
Laser drilling
Laser ablating
Technical data: LLT.tube
Applications: Laser cutting
Laser drilling
Laser ablating
Processable parts: Tubes / cylindrical components: 0,3 mm - 19 mm diameter
2D parts: up to 40 mm * 40 mm * 20 mm
Processable material: Metals
Stainless steel
Nitinol
Titanium
Phynox
Platinum-Iridium
Cobalt-Chrome
Magnesium
Brass
Copper
PEEK
Polymers
Special materials
Processable material thickness: Up to 1,5 mm
Path accuracy: X-axis: up to ± 3 µm
Y-axis: up to ± 3 µm
Z-axis: up to ± 10 µm
Repeatability: X-axis: up to ± 1 µm
Y-axis: up to ± 0,5 µm
Z-axis: up to ± 3 µm
Process area (X * Y * Z): Up to 600 mm * 50 mm * 35 mm
Movement speed: X-axis: up to 1.000 mm/s
Y- axis: up to 500 mm/s
Z- axis: up to 100 mm/s
4-axes-processing: Radial cutting
Off-axis cutting
Parallel cutting edges
Rotation axis: Rotation range: > 360°
Accuracy: up to ± 0,006° per 360°
Rotation speed: 400 min-1
Laser sources: Fiber laser
Ultrashort pulse laser
(combined operation possible)
Process optics: Fixed optics
CNC control system: Eckelmann
Machine base: Granite
Dimensions (W * D * H): app. 2.100 mm * 650 mm * 1.800 mm incl. swivel range of operation panel (without electrical cabinet)
Weight: app. 1.800 kg incl. electrical cabinet
(depending on the specific machine configuration)
Ergonomics: Designed as stand or seated workstation
Flexible front module for maintenance and process set-up
- Fully automated tube & bar feeder incl. unloading function
- Fully integrated and closed water circuit for wet cutting applications
- Finished part sorting
- Vision system for automatic measurement and inspection
- Fully integrated electrical cabinet
- Pneumatic clamping systems
- Filter and cooling systems
- ECKELMANN CNC controller
- Ergonomic touch screen user interface
- Handheld control unit for setup work and manual positioning
- Programming on the machine or at the computer workstation
- CAD-CAM software for CNC programming
