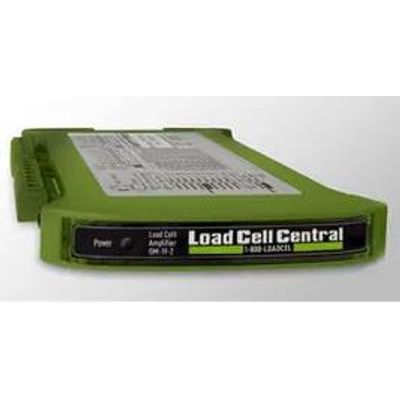

Load Cell Central - Model OM-19 -Load Cell Amplifier

Load Cell Central’s OM-19 load cell amplifier is the perfect solution for OEM applications that do not require a load cell display.  24VDC powered, this load cell amplifier is often paired with PLC systems, and provides an amplified load cell signal to 0-10V, +/-10VDC, or 4-20mA output.  The OM-19 can power up to four 350 ohm strain gage load cells.  The OM-19 load cell amplifier also features a shunt calibration switch, sense connections, excitation jumpers, and variable output rates from the factory.  The OM-19 signal conditioner comes in several models, including OM-19-1 which is an OEM bare board version, OM-19-2 is DIN rail mountable, or OM-19-3 the fully enclosed version.  Each version is also available with two optional configurable setpoints.
