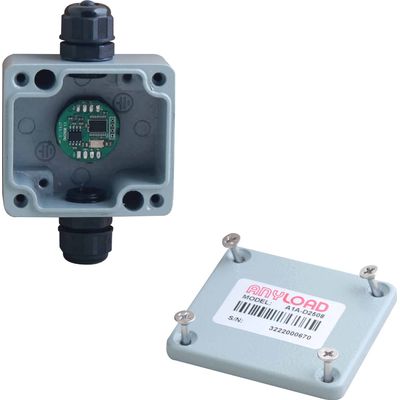

ANYLOAD - Model A1A-D25 -Load Cell Amplifier
ANYLOAD A1A D25 strain gage amplifiers provide load cell and transducer signal conditioning. The A1A series strain gage amplifiers are DC-powered amplifiers that can drive 1 load cell connected directly. They can also drive several load cells up to 4 x 350Ω load cells or 8 X 700Ω load cells through a junction box. Housed in an aluminum casting enclosure. The A1A-D25 digitizer module includes both RS232 and RS485 communication interfaces with ModBus protocol.
Most popular related searches
- Small volume and enable to mount inside of load cell
- One input port, can connect directly to 1 x 350 Ω load cell, or max 4 x 350 Ω (or higher resistance) load cells through a junction box
- 24-bit A/D Converter, high speed processor
- Internal digital filter and strong anti-interference ability
- Contains ability for 9 point linear calibration
- Applied to all kinds of strain gauge bridge-type load cell, such as, tension, compression, torque and so on.
- Specifications : A1A-D25
- Load Cell Type : All strain gage types
- Power Supply : 6~24 V DC
- Input Range : 0.8~3.9 mV/V
- Output Signal : RS232/RS485
- Communication Protocol : MODBUS
- Resolution : >1000000
- Temperature Coefficient : Better than 100ppm
- Operating Temperature Range : -30 to 80°C / -22 to 176°F
- Excitation Voltage to Load Cell : 5V
