AnyLoad - Model A1A-22B -Load Cell Amplifier

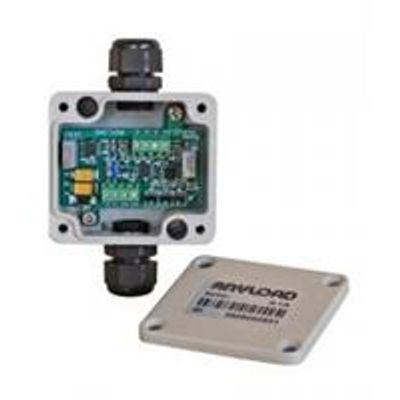

The ANYLOAD A1A-22B Load Cell Amplifier is a DC-powered device designed for precise signal conditioning of load cells and transducers. It can directly drive a single load cell or multiple load cells, supporting up to 4 x 350Ω or 8 x 700Ω load cells through a junction box. Housed in an IP66-rated aluminum casting enclosure, the A1A-22B amplifier provides robust protection against harsh environments and features two through holes for easy installation. With a wide output signal range of 0V-10V or 4mA-20mA, it offers versatility for various applications. Additionally, the A1A-22B is an upgraded version of the discontinued A1A-22, featuring compatibility with Balluff IO-Link, making it suitable for integration with modern industrial systems.

• Gain Range ~179x-1900x
• Offset Range ±2V
• Load Cell Type All strain gage types
• Power Supply 24V DC ± 10%
• Excitation Voltage Output 12V DC
• Input Range 0mV- 30mV
• Maximum Input Voltage (DC) 30V
• Output Signal 0V-10V
• Output Signal 4mA-20mA
• Maximum Output Signal Range -2V-12V
• Total Error 0.2% of full scale
• Enclosure Material Aluminum casting
• IP Rating IP66

• DC-powered
• Suitable for all strain gauge types
• Enclosed in aluminum casting
• Broad output signal range: 0V – 10V or 4mA – 20mA
• Contains 2 through holes for quick installation
• Zero Calibration and Span Calibration settable via potentiometer
• Balluff IO-Link-compatible
