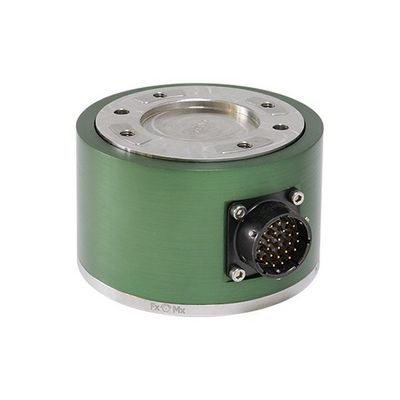

Burster - Model 8565 -Load Cell And Torque Sensor – X/Y/Z
Tensile/compressive force measurement in the X and Y directions simultaneous, for robotic applications, non-linearity < 0.1 % F.S., goodprice/performance ratio.
Most popular related searches
- Measuring ranges:
- Load: Fx = 1 kN / Fy = 1 kN / Fz = 2 kN
- Torque: Mx / My / Mz = 50 Nm
- Customized axis configuration
- Very low crosstalk
- Robot flange according to DIN ISO 9049-1
- Measuring range :
- Load: Fx = 1 kN / Fy = 1 kN / Fz = 2 kN
- Torque: Mx / My / Mz = 50 Nm
- Direction of force : Tension and compression in X, Y and Z directions
- Range of operating temperature : -10 ... +80 °C
- Specific characteristics :
- Customized axis configuration
- Very low crosstalk
- Flange according to DIN ISO 9049-1
- In robotics and automation engineering, the requirements for precise, tactile handling are constantly increasing. The robust 8565 multi-axis sensor with its low crosstalk enables you to monitor and evaluate your process at any time, regardless of the sensor’s orientation.
- With just one sensor, you can obtain accurate three-dimensional load information. Its six independent outputs let you selectively evaluate the direction of action of the loads (axial force [Fz] / lateral forces [Fx/Fy] / torque [Mz] / bending moment [Mx/My]).
- Thanks to its compact design and adaptation via the standardized robot flange in accordance with DIN ISO 9049-1, the sensor can be integrated into many applications quickly and easily.
- When the slightest deviations are detected in your fast-moving and complex production processes, you can intervene immediately to make adjustments. This helps to prevent faulty parts and reduce manufacturing costs.
