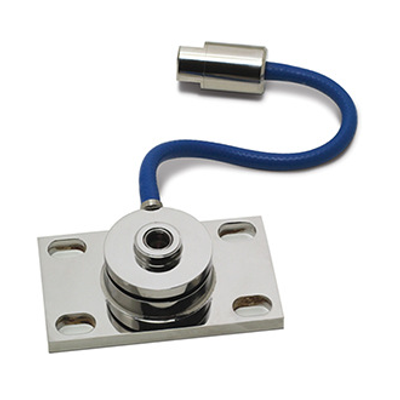

Kistler-Morse - Model II -Load Disc Cell Sensor
The LDII load cell has the lowest profile for its load ranges in the industry, and uses the proven KM semiconductor strain gauge technology to continuously measure the weight of material for in-process inventory and bulk storage vessels.
Most popular related searches
load cell
strain gauge
load cell sensor
high-pressure washing
pressure washing
mixing vessel
load sensor
seismic
- Suitable for use with mixing and blending vessels, surge hoppers, and vessels with agitators
- Standard load ranges are from 150 to 100,000 pounds (68 to 45,360 kg) per vessel support
- Vessel tipping, walking or overturning while agitating is eliminated
- No external vessel hold-downs are necessary, even in
areas of high wind or seismic activity - Only 0.004 inch at rated output minimizes piping & plumbing influences for reliable results
- Incorporates NEMA 4 & 4X in a stainless steel hermetically sealed package for protection in high pressure, caustic wash downs
- Cable runs up to 2000 feet
- Average Accuracy: 0.02%
- Excitation Voltage: 10 to 30 VDC
- Excitation Current: 4 mA
- Defection: 0.004
- Functional Integrity: 2x rated load in compression
- Structural Integrity: 4x rated load in compression
- Operating Temperature: 0° to 100° F (-18° to 38° C)
- Dimensions: Installed Height: 2.7 in. (69 mm) – 15k to 25k; 5.5 in. (140 mm) – 35k to 100k
