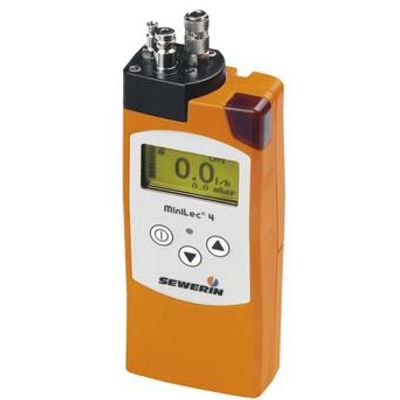

MiniLec - Model 4 -Load & Leak Tightness Testing Measuring Device
Measuring device for load testing, leak tightness testing and serviceability testing in accordance with TRGI and for regulator inspection. The MiniLec 4 is a measuring device for load testing, leak tightness testing and serviceability testing in accordance with DVGW (German Technical and Scientific Association for Gas and Water) Code of Practice G 600 "Technical regulations for gas installations" and for regulator inspection.
Most popular related searches
leak tightness testing
tightness testing
leak tightness
gas leak detection system
gas leak detection
inspection system
gas leak
leak detection
gas leak monitoring
tightness testing system
- Using tables stored in the device, the operator selects only the pipe volume, the device performs the rest of the measuring procedure automatically
- Two equipment versions are available:
with load testing (fully equipped) and without preliminary testing - Operating modes: serviceability testing, leak tightness testing and load testing
- Regulator inspection with static pressure, flow pressure, safety valve shut off pressure, zero position and testing of the gas failure device
- Easy operation using three keys
- Device software with a user menu and function menu for individual device configuration (PIN code protected)
- Infrared interface (IrDA) for
On-site documentation (print-out on mobile printer)
On-site data transfer to mobile computer - Device software available in various languages • PC software makes documentation and archiving easy
- Serviceability test: simultaneous display of pressure and flow
- Adjusted for CH4, C3H8, C4H10, H2, town gas, air
