Ohio MagneticsLoadstar and Super Loadstar Scrap Handling Magnets

SHARE

The LOADSTAR and SUPER LOADSTAR series by Ohio Magnetics are rugged lifting magnets, expertly crafted for industrial applications, particularly in production scrap handling. These systems boast a robust cast case construction, ensuring durability and reliability in demanding environments. Designed with industrial efficiency in mind, these magnets are integral to materials handling operations where scrap needs to be moved swiftly and safely. Ohio Magnetics, a business entity of HBD Industries, Inc., emphasizes quality and performance in their products, which are manufactured in the U.S.A. The company`s magnets come with comprehensive technical specifications, facilitating their integration into various industrial setups. Available literature and technical data provide insights into the operational capabilities and technical configurations of the magnets, allowing for informed decision-making and seamless product integration.

Most popular related searches

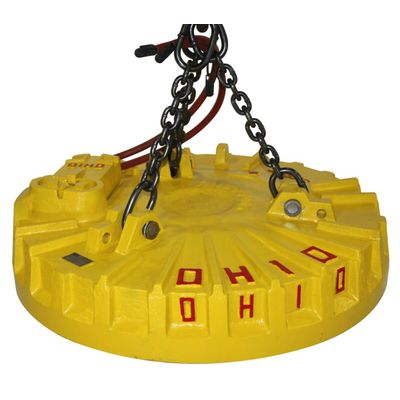

The LOADSTARTM series of lifting magnets feature a heavy-duty cast case construction designed for production scrap handling.

  • Sizes ranging from 48” to 72“(1220 to 1829 mm) in diameter
    • Sizes are cast case except for 72” fabricated
  • Continuous duty cycle ratings
  • Deep field (LOADSTAR) or extra deep field (SUPER LOADSTAR) coil design
  • Magnet options matched to excavator mechanical and hydraulic capacity
  • Chain suspension standard
  • Standard hard face weld on SUPER LOADSTAR Series for high abrasion applications
  • Superior strength and rugged steel case construction
  • Increased production, long service life and easy serviceability
  • Low-cost, high-performance magnets ideal for scrap handling value
  • Lifting Capability Range
    • LOADSTAR – 1,800 to 4,200 lbs.
    • SUPER LOADSTAR– 2,200 to 5,600 lbs.
  • 230 VDC standard; special voltages available by request

Industrial Applications

  • Production scrap handling
