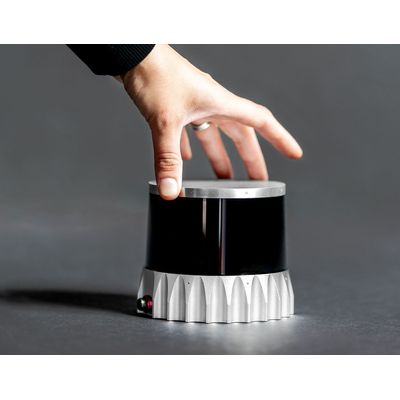

Ouster - Model OS2 -Long-Range Lidar Sensor

200+ meter range

LONG RANGE VISION
See farther with the long-range OS2 lidar sensor. Fit for highway-speed autonomy and high-altitude drones.

High resolution

ENHANCED PERCEPTION
With 128 vertical beams, Ouster lidar sensors offer the highest resolution available for superior object identification.

Rugged and reliable

ALL-WEATHER TOUGH
Ouster lidar sensors are designed for 100,000 hours of continuous use. Water-proof, robust to shock and vibration, and temperature rated from -20 ºC to +64 ºC.

Upgradeable firmware

GREAT KEEPS GETTING BETTER
Frequent firmware updates add features and improve sensor performance, helping you get more out of your sensors.

Data quality

ALGORITHM OPTIMIZED
The structured digital lidar data output and unmatched intensity data quality from Ouster lidar sensors improves algorithm efficiency and accuracy.

• PTP and NMEA/PPS time synchronization options
• On-the-fly programming of frame rate and horizontal resolution
• Fixed angle data measurement
• Multi-sensor crosstalk resistance
• Industry-leading intrinsic calibration; no recalibration needed
• Pluggable space-style bayonet connector
• Over-the-network firmware updates
• Class 1 Eye Safe per IEC/EN 60825-1:2014

Always improving
Regular firmware updates continuously add features and improve performance.

Technical support team
Our team of applications engineers is here to answer your questions to help get your deployment moving.

Standard two-year warranty
We stand behind our rugged, reliable sensors so you can deploy with confidence. Option to add a three-year warranty plan.
