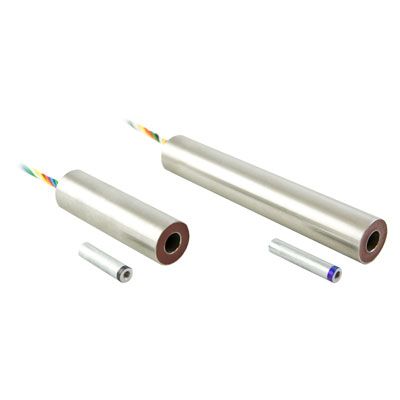

Trans-Tek - Model Series 210-220 -Long Stroke AC LVDTs

SHARE

The Series 210-220 AC LVDTs offer precision linear displacement measurements for applications with strokes from 0.5 to 60 inches. The transducers have been designed with an extremely low temperature coefficient, and non-linearity of less than ±0.25% F.S. Variable pitch secondary windings are incorporated into the design with computer controlled winding machines to minimize package length to stroke ratio, and assure a uniform product.

  • Ranges from ±0.25” to 60”
  • Stainless Steel Construction
  • Non-linearity ≤ 0.25%
  • High Sensitivity
  • Low Temperature Coefficient
  • Splashproof

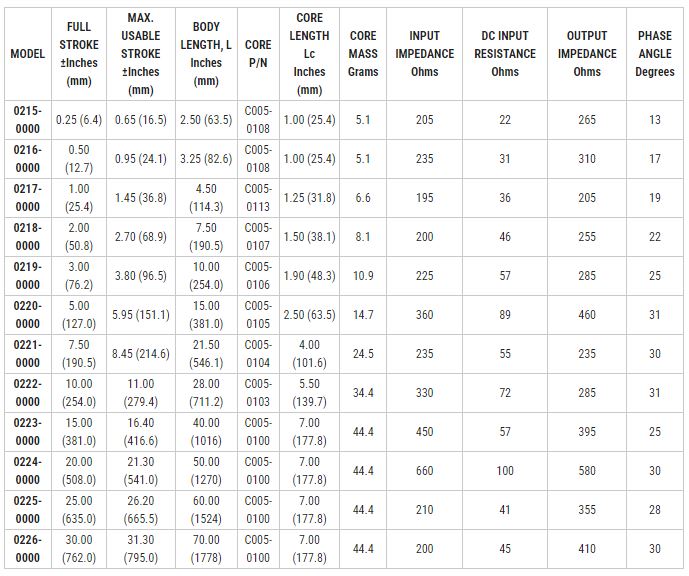

NON-LINEARITY: ≤ ±0.25% FS (Best Fit Straight Line)
REFERENCE FREQUENCY: Models 0215-0000 thru 0222-0000, 7.0 KHz; Models 0223-0000 thru 0226-0000, 3.0 KHz
SENSITIVITY: 0.50 V/V ±10% at FULL SCALE
INPUT VOLTAGE: 20 VRMS, Max.
NULL VOLTAGE: < 1.0% Excitation Voltage
TEMPERATURE COEFFICIENTS: < ±0.001% FS/°F Zero, < ±0.01% Reading/°F Span
TEMPERATURE RANGE: -67°F to +257°F (-55°C to +125°C) Operating; -67°F to +275°F (-55°C to +135°C) Storage
OUTER HOUSING AND BORE LINER: 300 Series Stainless Steel
CORE: Chrome Plated Iron/Nickel Alloy
