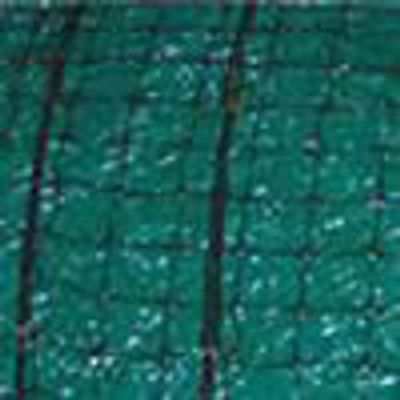

Ero-Guard - Model EG- 2P10 -Long Term Erosion Blankets
Size: Available in 16’ and 8’ widths and 112.5’ and 562.5’ lengths (Custom cuts are available upon request). Plastic: 2 layers of .5” x .5” opening, approximately 5.0 lbs/1000 ft2 photo stabilized black polypropylene plastic. Thread: 1200 denier UV stabilized black split yarn Matrix: 100% Pure polypropylene green fibers, 0.625 lbs (10oz)/yd2. Packaging: All rolls are wrapped tightly with stretch wrap to protect the rolled erosion control product from the weather and elements.
Recommended Applications: EG-2P10 is recommended for use on slopes up to 1:1 and in high flow channels.
Recommended Installation pattern: The leading edge is to be trenched into a 6” deep trench and the blanket is to be placed parallel to the anticipated water flow. When more than 1 blanket is required, they are to be overlapped 6” on all overlapping sides and tiled in a shingle type pattern as to not let the water underneath the blanket.
