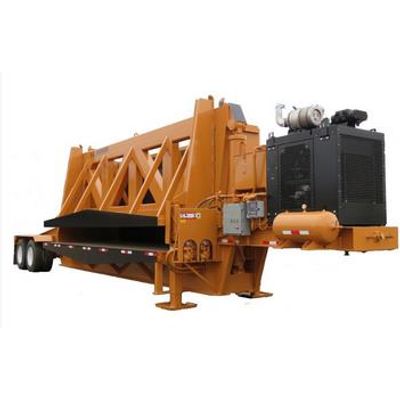

RM-Johnson - Model E-Z-A+22 -Long Vehicule Crusher
With a 22 foot long deck, the EZ Crusher A22 will easiliy handle your longer vehicles.
Opening Size
22` x 8`1" x 7`7"
Overall Length
45`
With its Volvo power, redesigned Top Tube Assembly, 22` wide crushing chamber, and increased capacity hydraulic system, our Model A22 Crusher will speed production and help ease the loading of your longer vehicles.
Our system`s unique bottom-mounted cylinders pull, rather than push the Crusher deck down, reducing the strain on the hydraulic system without sacrificing crushing power.
Our Crushers can be run manually or automatically with our remote automation system.
Each of our Crushers is built using standard-sized components that are readily sourced, maintained, and repaired. This means servicing the machine is a simple and efficient process.
Hydraulics
- System Pressure: 2500 psi
- Port Reliefs Set At: 2650 psi
- Cylinders: 10" bore
- Travel: 78"
- Shaft: 4" rod
Opening
- Size: 22` x 8`1" x 7`7"
Overall
- Weight: 62,000 lbs
- Length: 45`3"
- Travel & Operating Height: 13`3"
John Deere or Volvo Motor option availableeasier loading of tires.
