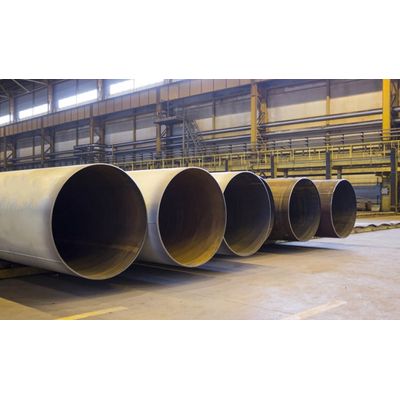

Union-Steel - Longitudinally Submerged Arc Welding (LSAW) Steel Pipe
LSAW (Longitudinally Submerged Arc Welding) Pipe can be divided into UOE and JCOE pipe according to its processing methods. LSAW steel pipe has the characteristics of relatively simple process and fast continuous production, and has widely used in oil and gas, water transmission, engineering, offshore projects.
Most popular related searches
stainless steel pipe
oil and gas water
water transmission
ASTM A53
water engineering
steel welded pipe
oil-in-water
Features of LSAW Steel Pipe
- Large diameter
- Thick wall
- High Pressure resistance

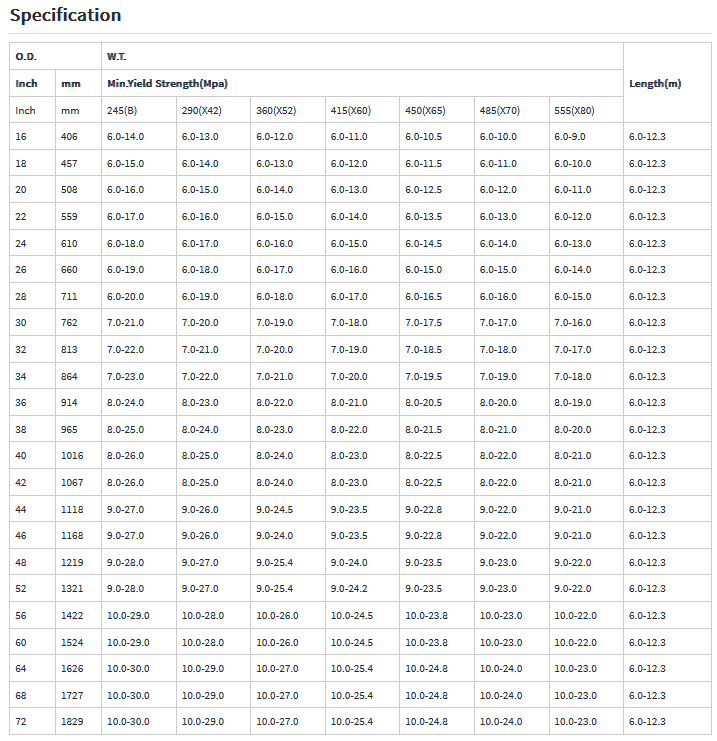

Specifications of SAWL Steel Pipe
- Product Name: LSAW Steel Pipe, SAWL Steel Pipe
- Size:
- Outer Diameter: 355.6mm-2320mm
- Wall Thickness: 7-50mm
- Length: 5.8m/6m/11.8m/12m/18m/32m
- API 5L PSL1/PSL2 Gr.A,Gr.B,X42,X46,X52,X56,X60,X65,X70
- ASTM A53/A252/A500/A672/A691/A139
- EN10210/EN10219/EN10217/EN10208/EN10297
- AS1163/JIS G3457
- Ends: Black ends / Bevelled ends / Plain ends
- Surface Treatment: Bare, Painting Black, Varnished, Galvanized, Anti-corrosion 3PE PP/EP/FBE coating etc.
- Application: Used for oil and gas, water transmission, engineering, offshore projects.
- Outside Diameter:Φ508mm1118mm (20"44")
- Wall Thickness: 6.0-25.4mm 1/4"-1"
- Quality Standards: API?DNV?ISO?DEP?EN?ASTM?DIN?BS?JIS?GB?CSA
- Length: 9-12.3m (30`40`)
- Grades: API 5L A-X90,GB/T9711 L190-L625
- Outside Diameter:Φ406mm1626mm (16" 64" )
- Wall Thickness:6.075mm (1/4" 3" )
- Quality Standards:API?DNV?ISO?DEP?EN?ASTM?DIN?BS?JIS?GB?CSA
- Length:3-12.5m ( 10`41` )
- Grades:API 5L A-X100, GB/T9711 L190-L690
