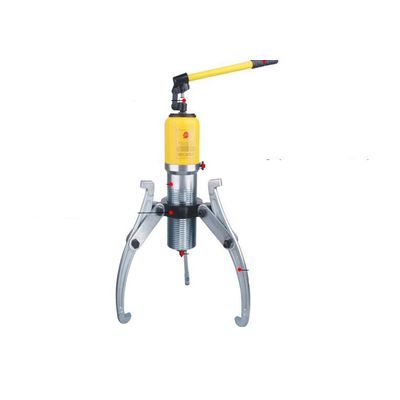

Lonlood - Model 10T 20T 30T 50T -Hydraulic Gear Puller Bearing Puller
Hydraulic pullers are used in all kinds of different applications such as workshops, and in many repair and assembly jobs to remove or install interference fit parts such as gears, couplings, bearings, wheels, pulleys, axles, shafts, brake drums, and many other types of press-fit components.
- when using,the slotted end of the handle is inserted into the return valve and the return valve stem is tightened clockwise.
- Adjust the jaw base to the jaw hook to grasp the pulled object.
- Swinging the handle up and down makes the piston starting rod move forward smoothly,and the claw hook retreat accordingly,pulling the pulled object out.
When using, first insert the slotted end of the handle into the oil return valve stem, and tighten the oil return valve stem in a clockwise direction.
Adjust the claw so that the claw catches the object being pulled.
The handle is inserted into the lifter hole, and the piston starting rod is lifted back and forth to move forward smoothly, the claw hooks correspondingly retreat, and the pulled object is pulled out.
The effective distance of the piston starting rod of the hydraulic puller is only 50mm, so the extension distance should not be greater than 50mm when in use. When it is not pulled out, stop, loosen the oil return valve, let the piston starting rod retract, and repeat for the second time after adjustment.
To retract the piston starting rod, just use the grooved end of the handle to slightly loosen the oil return valve rod in a counterclockwise direction, and the piston starting rod will gradually retract under the action of the spring.

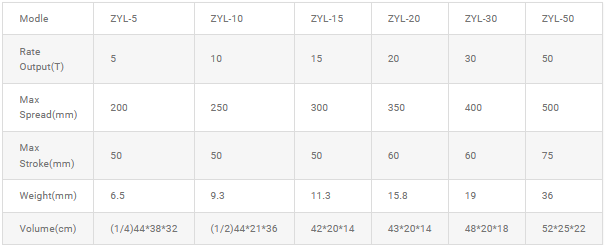

Before use, the hydraulic puller of corresponding tonnage should be selected according to the outer diameter, pull distance and load force of the object to be pulled. Avoid overloading and avoid damage.
This hydraulic puller is used at -5°C-45°C and adopts (GB443-84) N15 mechanical oil. Used at -20?-5?, using (GB442-64) synthetic spindle oil.
In order to prevent damage to the equipment caused by overloading, an overload automatic unloading valve is installed in the hydraulic device.
When the pulled object exceeds the rated load, the overload valve will automatically unload, and a larger tonnage hydraulic puller is used instead.
This machine uses oil as the medium. The oil and the maintenance work of the machine must be done well to avoid clogging or oil leakage, which will affect the use effect.
New or long-term no used hydraulic puller, there is more air in the cylinder. At the beginning of use, the piston rod may have a slight sudden jump. The hydraulic puller can be reciprocated 2-3 times without load, and the air in the cavity can be removed. The puller that has been idle for a long time will harden the seal due to the long-term non-working of the seal. This will affect the service life of the puller. Therefore, when the puller is not in use, the puller must reciprocate 2-3 times a month without load.
