Loop Technology - Model IdentifEYE -Dynamic Labelling System with 3D vision

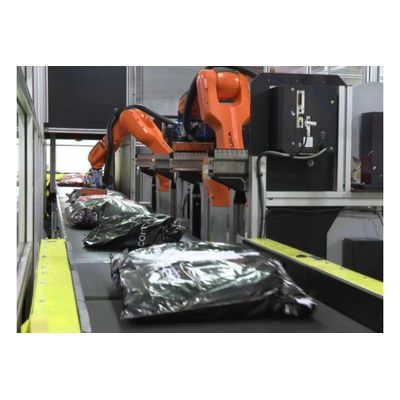

It uses 3D vision to scan a package and its label. The system uses this data to request a replacement final mile label from an external or internal source. IdentifEYE prints and applies the label to the package using a robot and dynamic label applicator for high accuracy positioning.

Any shipping data on an existing label is obscured by the new label with the systems overlabelling functionality.

IdentifEYE is a flexible system that can be adapted to stick labels on virtually anything with a 3D profile.

DYNAMIC 3D LABEL APPLICATION
3D imaging enables the robot to match the surface orientation of the product, adapting to each individual product as it comes down the line, ensuring every contact made is in the correct position.

INTELLIGENT FEATURE DETECTION
The 3D vision stage can recognise package features to either avoid them (i.e. where label placement would be unwanted) or pinpoint them (e.g. barcodes for overlabelling).

LARGE RANGE OF PRODUCT TYPES
The label applicator is capable of handling packages with complex 3D profiles in variable orientations and positions on the supply conveyor.

5MM LABEL PLACEMENT ACCURACY
The high level of label placement accuracy ensures any shipping data on any existing label is obscured by the new label with the systems overlabelling functionality.

• Min Product Size (mm) :
• Height: 10, Width: 170, Length: 120
• limited by label, can be configured
• Max Product Size (mm) : Height: 500, Width: 500, Length: Limited by up/downstream hardware
• Throughput : 2,400 labels per hour
• Cell Dimensions (m) : Length: 9.6, Width: 2.4, Height: 2.2
• Printer / Labels (mm) : Zebra ZE500 direct thermal transfer. A5 (148 x 210), A6 (153 x 101)
• Robots : KUKA AGILUS KR6 R900
• Interface : Loop Technology touch screen HMI
• Safety and Guarding : Fully interlocked and monitored panels, with polycarbonate inserts for clear vision in operation
