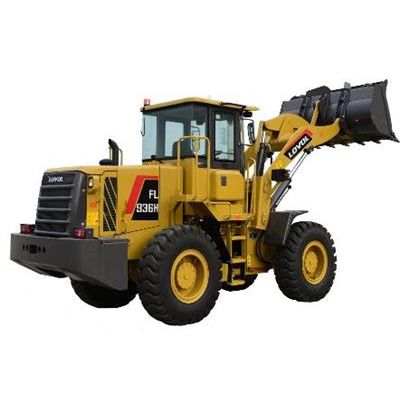

Lovol - Model FL936H -Wheel Loader

1. The new reinforced frame and patented composite hinge structure have been fully verified millions of impact fatigue experiment.
2. The shaft sleeve adopts 20CrMnTi honeycomb shaft sleeve, and the inner surface adopts patented spraying process, and has self-lubrication function and long service life.
3. The engine is perfectly matched with the efficient drive system and hydraulic system to improve production efficiency.
4. Standardly equipped with 2.0 m³ bucket, the spading efficiency is higher. And the baffle plate on bucket prevent material from spilling.

Main paramater

• Operating mass(kg） 10250
• Bucket capacity 2.0
• Rated load(kg） 3000
• Traction(kN） 101
• Digging force(kN） 98
• Gradeability 30
• Unloading height(mm） 2935
• Unloading distance(mm） 1100
• Min. ground diatance（mm） 340
• Wheel tread（mm） 1850
• Wheelbase（mm） 2880
• Bucket outer turning radius（mm） 5990
• Outline distance(mm) 7170*2420*3200

Engine

• Model Weichai WP6G125E22
• Max. torque(N·m） 500
• Rated power(kW） 92
• Rated rotational speed(rpm） 2200

Running system

• Gearbox shift Front:4 gears Rear:2 gears
• Max. speed 39
• Type 17.5-25
• Ply rating 12
• Steering angle 38

Other

• Operating model Mechanically control
• Sum of three items(s) 9.2
• Fuel tank(L) 170
• Hydraulic oil tank(L) 120
