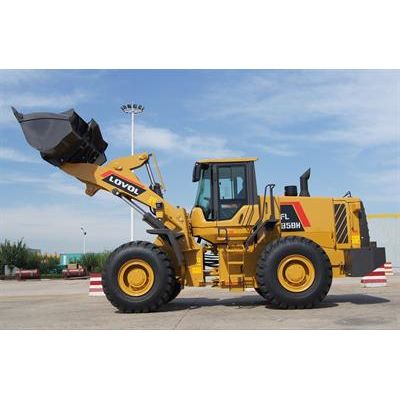

Lovol - Model FL958H -Wheel Loader
The world-renowned German ZF gearbox is highly reliable, can operate comfortably and significantly reduce the maintenance costs. ROPS/FOPS certified cab for operator safety and reliable operation in tough conditions.
Most popular related searches
- Lovol customized power and exclusive power curve, excellent acceleration performance and quick response
- Lovol constant variable hydraulic system with independent intellectual property rights.
- Optional multiple attachments include: multiple buckets, pallet fork, grapples, snow pusher blade.
Main paramater
- Operating mass(kg） 16830
- Bucket capacity 3.3
- Rated load(kg） 5500
- Traction(kN） 155
- Digging force(kN） 165
- Gradeability 30
- Unloading height(mm） 3100
- Unloading distance(mm） 1160
- Min. ground diatance（mm） 440
- Wheel tread（mm） 2150
- Wheelbase（mm） 3300
- Bucket outer turning radius（mm） 7020
- Outline distance(mm) 8420*2980*3380
Engine
- Model Weichai WD10G220E21
- Max. torque(N·m） 860
- Rated power(kW） 162
- Rated rotational speed(rpm） 2200
Running system
- Gearbox shift Front:4 gears
- Rear:3 gears
- Max. speed 40
- Type 23.5-25
- Ply rating 16
- Steering angle 36、38
Other
- Operating model Pilot control
- Sum of three items(s) 10.6
- Fuel tank(L) 320
- Hydraulic oil tank(L) 134
