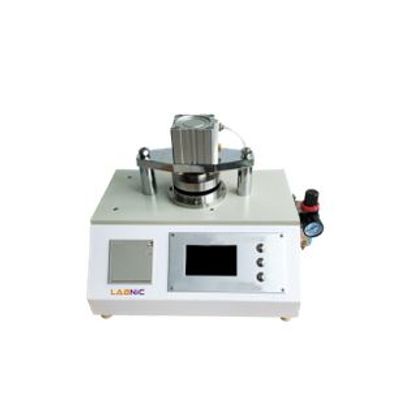

Labnic - Model LBN-AT112 -Low Air Permeability Tester

FromLabnic Scientific

SHARE

Low Air Permeability Tester LBN-AT112 uses cutting-edge technology to evaluate the air permeability of ultra-thin sheets. With various test methods such as Schopper, Bentsen, and Gurley, the unit provides quick and simple results. It is a fully automated instrument with a measurement range of 0 - 400 ml/min and a pressure difference of 1KPa that is controlled by a single chip microcomputer. The device includes an LCD screen as well as a micro-printer for quick and clear printing.

Most popular related searches

air permeability testing

permeability testing

laboratory equipment

laboratory air testing

process monitoring

permeability test

laboratory testing

Measure Range: 0 -400 ml/min, 0.00005 - 0.2 urn/Pas
Accuracy: 10-5 pm/(Pas), 3x10 - 4 ml/min, 0.1s (Gurely)
Linear Error: <1%
Measuring Area: 50 cm2 (selectable)
Pressure Difference: 0.05 KPa - 6 KPa
Power: AC110 - 240V
Dimension: 420x340x480 mm
Weight: 28 Kg

Designed with microcomputer control
Whole test is fully automatic, Fast and accurate
Adopts an intelligent chip and load sensor to increase the test accuracy
Equipped with English menu LCD screen with soft touch buttons
Micro-printer, Fast and clear printing
It can set pressure diFFerence based on the permeability oF the product
Data recording and processing Functions

It is a special instrument: widely used in testing the permeability ultra-low thin sheets oF variety materials, such as paper, mica tape, thin film or other sheet objects etc.
