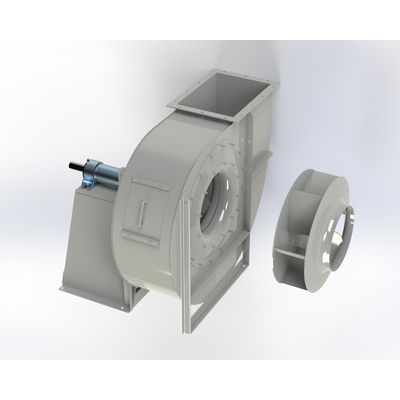

Euroventilatori - Model EUC Series -Low and Medium Pressure Centrifugal Fan
Low and medium-pressure centrifugal fan with high efficiency and low-noise reverse-blade impeller. Belt driven. Idoneo al trasporto di materiale in miscela con l'aria. These fans are characterized by a very flat curve of the absorbed power, in order not to overload the motor neither when working with open inlets.
Most popular related searches
centrifugal fan
low pressure centrifugal fan
centrifuge
cement industry
granulator
dust suction
air mixing
- Use: suction of dusts, mists, granulates, wooden shavings of minimum sizes and materials in general mixed with air excluding filamentous material; suitable in carpenter shops, mechanical industries, cement factories, ceramic factories, tanneries , foundries, in the mill and chemical industries, and in all those applications where it is necessary to transportation harmful air with maximum temperature of 90°C.
- Temperature: for temperatures of the transported fluid higher than 90°C up to 350°C a small heat stopping fan is splined to the shaft between support and scroll; the fan is painted with a special aluminum varnish suitable for high temperatures.
- Air flow: 6.3-14m3/min
- Inlet pressure: 42-79kg/m2
- Outlet pressure: 42-79kg/m2
- Engine installed: N/A-N/Apoles
- Installed power: N/AKW
- Rotation speed: 2750round/min
- Limit speed: 5000round/min
- Fluid type: Clean, Dusty, Material transp.
- Inlet flange: ?129mm
- Outlet flange: 140x100mm
- Weight without engine: 19Kg
- GD2: 0.05Kgm2
General notes:
The fan is revolvable.
