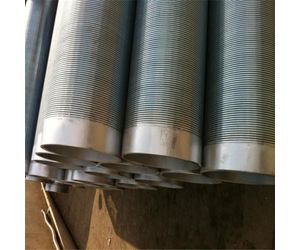

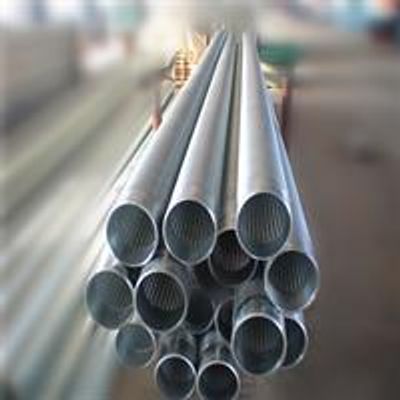

FY-XL - Model 035 -Low Carbon Galvanized Wedge Wire Screen Tube
Low Carbon Galvanized Wedge Wire Screen Tube Heat pumps are properly known as geothermal air conditioners. They transfer heat into or out of the ground to cool or heat your home by using a water well as a heat sink. The water well screen is a key component of geothermal wells, keeping sand out of the water pumping system Order Information Screen materials: stainless steel, galvanized carbon steel, carbon steel with plastic coating, or custom materials Slot size: 0.1mm-15mm Diameter (inches): 2,3,4,5,6,8,10,12,14,16,20. 29mm-1000mm Length: 2.9m, 5.85m. The maximum length is 6.05m. Connection method: beveled, circumferentially welded, or threaded connections
water well screen, perfect roundness screen tube, profile wire screen pipe, wedge wire screen, wire wrapped screen, screen tube, screen pipe, sand control well screen, oil well screen, v wire slot screen, rod based continuous slot screen, wire wound stainless steel screen pipe, johnson well screens
Features of wedge wire screen pipe
1. High Open Area
More than 25% of open area allows water to seep through the dewatering screen at a reduce speed, while allowing for a lower flow resistance. The enhances the water removal rate, resulting in a more efficient water removal process.
2. Non-clogging Performance
Continuous slots widen inwardly from the screen surface to minimize the chance of sand clogging the slot opening,
3. Excellent Pressure Resistance
The wedge wire screen is welded in a single from with no weld seams on the surface. Precise welding technology gives the screen its strength, making it ideal from high pressure applications
4. Great Sand Barrier
Precisely machined slots keep sand, silt and clay from entering the well, preventing abrasion.
5. Easy Installation
Compared to bridge slot screens or cement pipes, the wedge wire well screen in lightweight and easy to lay on the ground. It is also safe and convenient.
6. Material
The screen is available is galvanized, low-carbon steel, or stainless steel in grades 304 and 316, Premium materials do not retain sand and other impurities, ensuring a non-clogging performance.
