Inertial Labs - Model INS-DU -Low Cost Dual Antenna GPS-Aided Inertial Navigation Systems

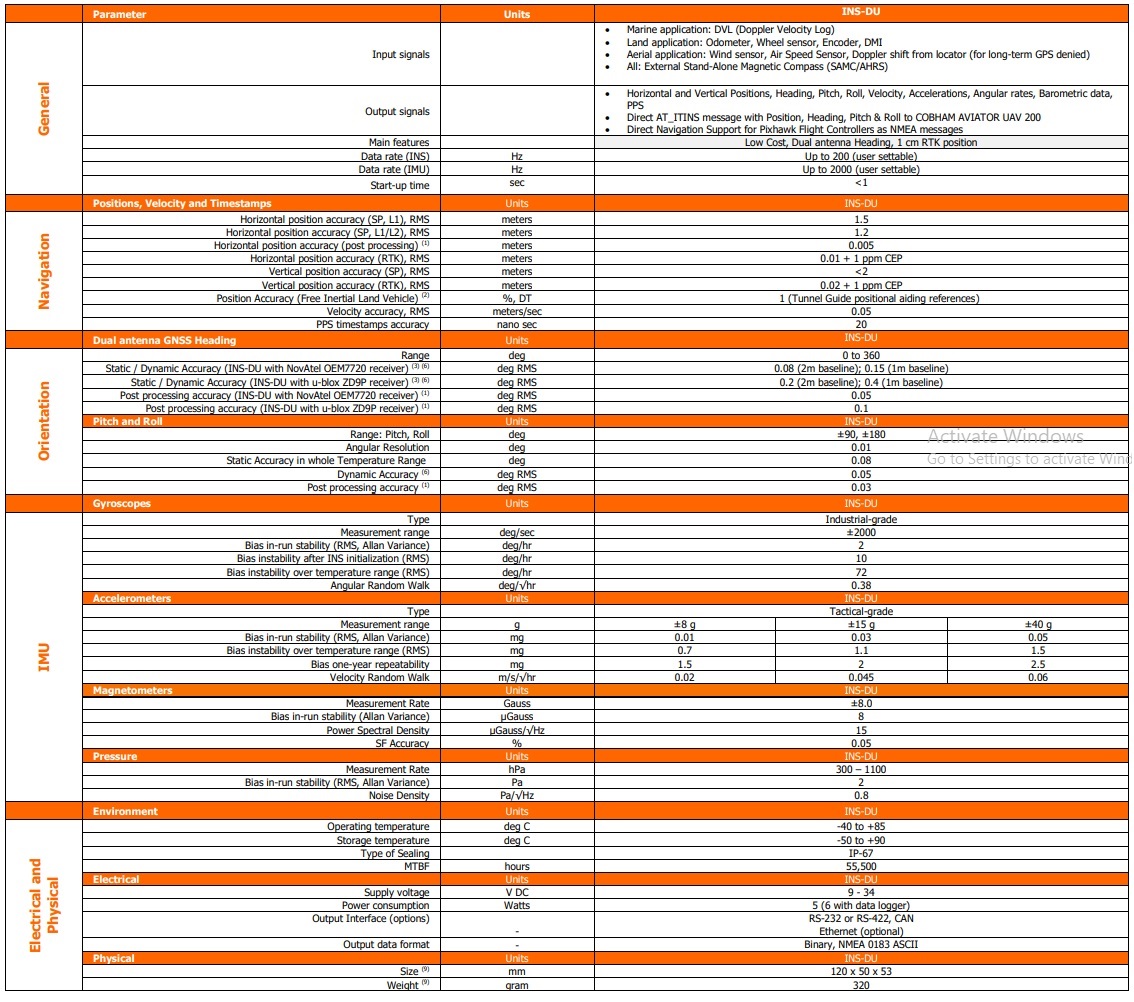

Models: Dual Antenna, Dual Antenna u-blox GNSS Inertial Navigation System. Heading Accuracy: 0.2° (2m baseline) / 0.4° (1m baseline). Position Accuracy: 0.5cm (PPK), 1cm (RTK), 60cm (SBAS). Pitch & Roll Accuracy: 0.05° dynamic, 0.08° static. GNSS Constellations: BDS, GAL, GLO, GPS, QZSS. Corrections: PPK, RTK, SBAS. Type of IMU: MEMS, Industrial-grade. Magnetometer: Embedded Fluxgate Magnetic Compass. Other Features: Affordable price, u-blox all-constellation GNSS, RTK. Size (mm): 120 x 50 x 53. Weight (gram): 320. Applications: Low-Cost GNSS-Denied Navigation; Low-Cost Survey and Scanning System.
(1) RMS, incremental error growth from steady state accuracy. Post-processing results using third party software;
(2) Under ideal conditions that include proper static alignment and in-field dynamic motions during loss of GNSS signal;
(3) 2 meters base line between two GNSS antennas;

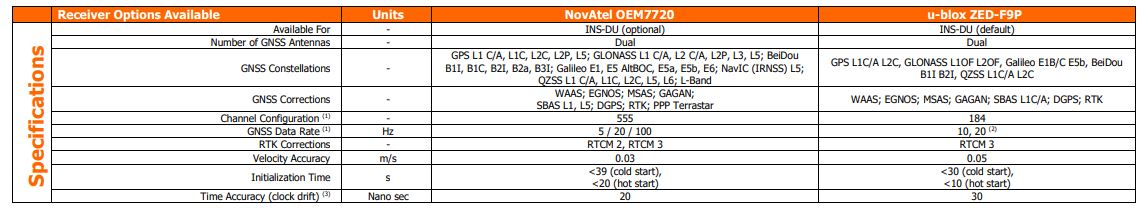

(4) tracks up to 60 L1/L2 satellites;
(5) 50 Hz while tracking up to 20 satellites. 20 Hz position update rate for Basic model of INS;
(6) dynamic accuracy may depend on type of motion;
(7) time accuracy does not include biases due to RF or antenna delay;
(8) If tracking GPS only;
(9) Weight and size are PN dependent. Customers should obtain the most recent 2D/3D files before designing any interface hardware;
