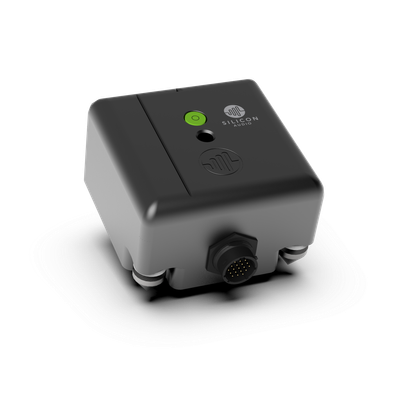

The Silicon Audio Model 203 Low Noise Accelerometer bridges the gap between traditional strong motion accelerometers and weak motion seismometers. The exceptionally large dynamic range of the instrument can eliminate the need for multiple sensors and applications which once required a broad-band seismometer paired with a strong-motion accelerometer can be addressed with a single Silicon Audio Low Noise Accelerometer.
Silicon Audio Seismic
- Home
- Companies
- Silicon Audio Seismic
- Products
- Low Noise Accelerometer
Most popular related searches
Passband: 0.004 – 800Hz
Noise: 0.5ng/√Hz [@ 10Hz]
0.8ng/√Hz [@ 1Hz]
3ng/√Hz [@ 0.1Hz]
10ng/√Hz [@ 0.01Hz]
Dynamic Range (@1Hz over 1Hz BW): 183 dB
Max Output Voltage: 60 V pk-pk
Power: 150 mW for 3 axis
Wide Supply Voltage Range: 6-25V DC, over current / over voltage and reverse polarity protection
- No mass lock required for transport
- Sensor Tilt tolerance ±15°
- Shock tested to > 1500g (0.5ms ½ sine)
- Operates over −35°C to 75°C (polar-rated sensors available)
