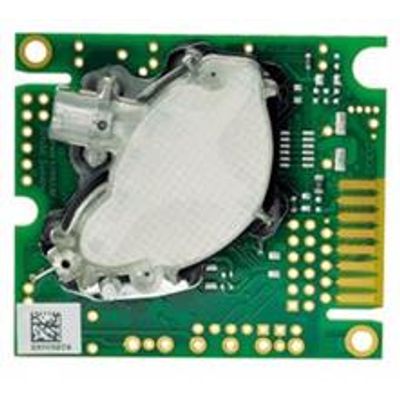

Senseair - Model K33 LP T -Low-Power Module

SHARE

K33 LP is a low-power module that fits in any application where it is important to keep power consumption at a minimum without sacrificing performance. The platform is designed for integration into a host apparatus, such as battery operated products. The module also measures temperature, and humidity is an option.

Most popular related searches
NDIR hydrocarbons
2011/65/EU
RoHS compliance
temperature monitoring
RoHS regulations
CO2 monitoring
carbon dioxide gas monitoring
temperature monitoring system
NDIR
humidity measurement
  • Low power consumption
  • Individually calibrated
  • Maintenance-free
  • Long term stability

K33 LP is a low-power module. The adjustable measurement interval results in average power consumption that can be reduced to less than 52 μA (measurement 1/60 min). The module is designed for the low-power application. As all other sensors from Senseair, the module is designed for high volume production with full traceability by sensor serial number on all manufacturing processes and key components. Every sensor is individually calibrated and is provided with a UART digital interface. Optional features are RH/Temp.

  • Product number 033-8-0008
  • Target gas Carbon dioxide (CO2)
  • Measurement range CO2 0 to 5,000 ppm
  • Storage temperature range -30 to +70 °C
  • Storage environment Non condensing, non-corrosive environment
  • Operating environment  Residential, commercial and industrial spaces[1]
  • Operating temperature range 0 to +50 °C
  • Life expectancy >15 years
  • Maintenance Maintenance-free when using SenseAir ABC algorithm (Automatic Baseline Correction).[2]
  • Compliance with RoHS directive 2011/65/EU
  • Electrical / Mechanical
  • Power supply 4.75 to 12.0 VDC maximum rating, powered via Vbat+, 5.50 to 12.0 VDC maximum rating, powered via G+
  • Average current consumption
  • Peak current consumption <300mA
  • Electrical connections Vbat+, G+ and G0
  • Dimensions (mm) 51 x 57 x 12.5 mm (Length x Width x Height)
  • CO2 measurement
    • Operating principle Non-dispersive infrared (NDIR)
  • 033-8-0008 Senseair LP T Low power sensor core for CO2and temperature measurement
  • 033-8-0009 Senseair LP T/RH Low power sensor core for CO2, temperature and RH measurement
