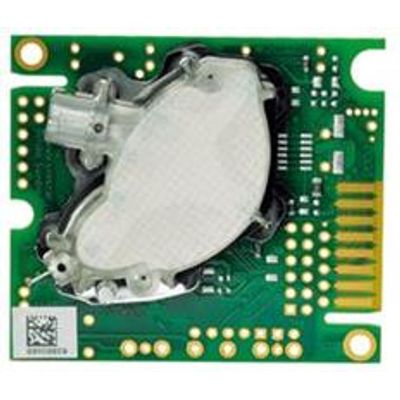

Senseair - Model K33 LP T/RH -Low-Power Module
K33 LP T/RH is a low-power module that measures CO2, temperature and humidity. The adjustable measurement interval results in average power consumption that can be reduced to less than 52 μA (measurement 1/60 min).
- Maintenance-free
- Low Power
- Individually calibrated
- Long term stability
K33 LP T/RH is a low-power module that measures CO₂, temperature, and humidity. The adjustable measurement interval results in average power consumption that can be reduced to less than 52 μA (measurement 1/60 min). The module is designed for low-power application. As all other sensors from Senseair, the module is designed for high-volume production, with full traceability by sensor serial number on all manufacturing processes and key components. Every sensor is individually calibrated and is provided with a UART digital interface.

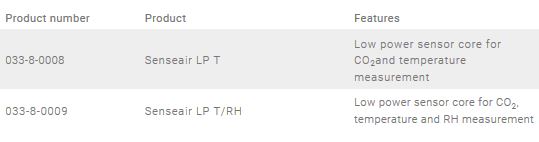

- Product Number 033-8-0009
- Measurement range CO2 0 to 5,000 ppm
- Temperature measurement range 0 to 50°C
- RH measurement range 0 to 100% RH (non condensing) *
- Accuracy ± 30 ppm ± 3 % of reading
- Dimensions 57 mm x 51 mm x 14 mm
- Operation temperature range 0 to 50 °C
- Operation humidity range 0 to 80% RH (non-condensing)
- Power supply 5-12 Volt DC
Power Consumtion Measurement interval
- 1.5 mA 30s
- 0.74 mA 60s
- 86 uA 15 min
- 52 uA 60 min
- Communication I2C/UART (Modbus)
