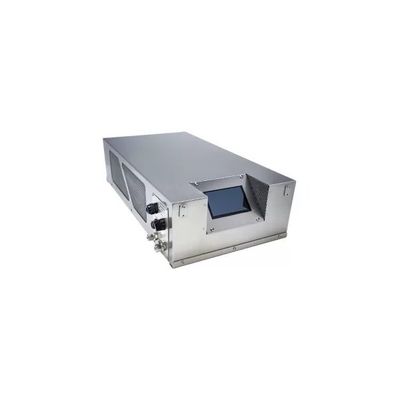

Absolute-Ozone Magnum - Model 120 LP -Low Pressure - Air Cooled Ozone Generator
Absolute Ozone® Generators are a quantum leap in Ozone technology. Due to specific elegant design, utilizing Microfluidic platform technology, and excellent durability, all air-Cooled Absolute Ozone® generators reliably provide ultra-pure, highly concentrated ozone for a wide variety of special applications. The performance is unequaled in the industry, with the capability of reliably producing high concentration ozone up to 15% by weight.
- High Ozone Concentration
- iOzone Intelligent Control/Diagnostic System
- Service & Maintenance Free
- 5 Years Warranty
- Easy to operate
- Compact design
Product Characteristics*
Ozone Production: 120 g/h
Nominal Working Pressure: 20 psig
Concentration (% by weight O3): Up to 14%,
Nominal Working Gas flow rate: 25 SLPM
Ambient Operating Conditions
Locate the Ozone Generator in a well-ventilated area that is protected from weather elements
Control Power Requirements
230 V ~ ±10%, 50/60 Hz, 1-Phase, 6.9A
Maximum Power Consumption: 1600 W
Physical Connections
Oxygen Inlet: 3/8-inch Swagelok
Ozone Gas Piping Outlet: 3/8-inch Stainless Steel Swagelok
Materials and Construction
Enclosure: Brushed Stainless Steel/Aluminum
High Precision Machined Ozone Generator Cell tested at up to 150 PSIG for leaks
O3/O2 Gas Tubing: PTFE/304 Stainless Steel/Brass
Dimensions and Weight
Enclosure Dimensions: 7-inch height x 14-inch width x 26.5-inch depth
Generator Weight: 70 lbs.
Certifications and Approvals
CSA – available as an option
Reliability, Performance, and Quality Backed By 5 Years Warranty
For best results with Absolute Ozone generators, we recommend using AirSep Oxygen concentrators.
AirSep offers completely self-contained oxygen generators (equipped with air compressors), these generators require no special installation. Simply connect the oxygen outlet to your oxygen distribution system and the power cord to a grounded electrical outlet. Turn the unit on and set your oxygen delivery pressure.
