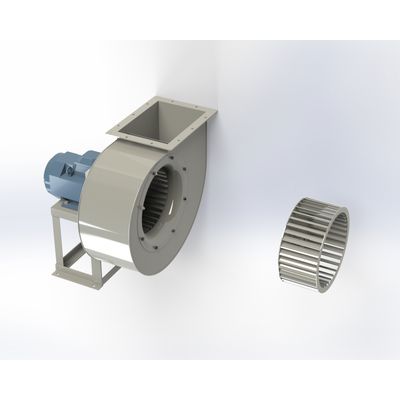

Euroventilatori - Model BP Series -Low Pressure Centrifugal Fans

• Use: suction of clean or dusty air. Thanks to the high efficiency and the reduced noise level, these fans are largely used for inventilation, conditioning, drying, cooling, mechanical draft, and toxic gas elimination plants.
• Temperature: must not exceed 80°C without cooling fan and 150° C with cooling fan. For higher temperatures it is necessary to modify the construction of the fan.

GO TO LIVE CURVE

• Air flow: 5-10m3/min
• Inlet pressure: 52-60kg/m2
• Outlet pressure: 57-66kg/m2
• Engine installed: 63 B-2poles
• Installed power: 0.25KW
• Rotation speed: 2750round/min
• Limit speed: 2800round/min
• Fluid type: Clean, Dusty
• Inlet flange: ?145mm
• Outlet flange: 90x90mm
• Weight without engine: 8Kg
• GD2: 0.01Kgm2

General notes:
The fan is revolvable.
Uses of Variable Speed Drives please pay attention to the possible overheating of the motor due to a lower rpm/Hz than recommended by the motor supplier.
