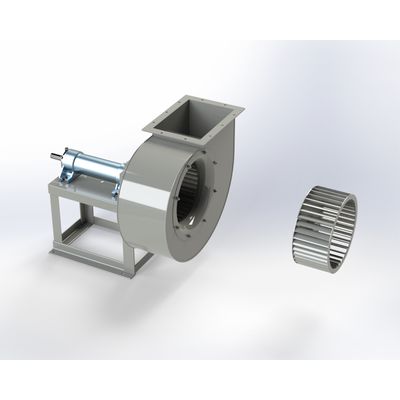

Euroventilatori - Model BPC Series -Low Pressure Centrifugal Fans

• Use: suction of clean or slightly dusty air in civil and industrial air conditioning. In particular, in plants for: ventilation in stables, mines, tunnels; suction in vitiated air, welding fumes, mists from solvent tanks and spraying booths; aeration in storage bins, sheds; cooling in plastic materials, cloths, glass sheets; drying in fodder, cereals, papers, varnishes, wood; elimination of fumes and toxic gas.
• Temperature: maximum temperature of 90°C with low pressure. For temperatures of the transported fluid higher than 90°C up to 350°C a small heat stopping fan is splined to the shaft between support and scroll; besides the fan is painted with a special aluminium paint suitable for high temperatures.

GO TO LIVE CURVE

• Air flow : 24-115m3/min
• Inlet pressure : 171.5-207kg/m2
• Outlet pressure : 175-211kg/m2
• Engine installed : N/A-N/Apoles
• Installed power : N/AKW
• Rotation speed : 2900round/min
• Limit speed : 2950round/min
• Fluid type : Clean, Dusty
• Inlet flange : ?255mm
• Outlet flange : 250x180mm
• Weight without engine : 28Kg
• GD2 : 0.18Kgm2

General notes:
The fan is revolvable
