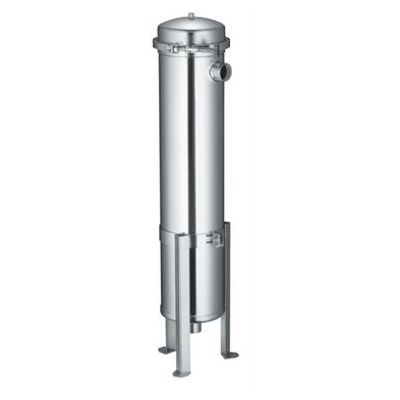

Fluid-ExponentsModel LPH -Low Pressure Filter Bag Housing

SHARE

Features: Top cover matches with SYS clamp. Easy to clean. Made from MIT SS304 and SS316 materials. Suitable tor various liquids. Shell strength calculation compliant to CNS standard. Convenient hand valve 3nd electric valve (or Inlet and Outlet. Replace filter bags without using any tools. Durable steel basket. High strength solid metal body for long lasting usage. Adjustable leg height.

Most popular related searches
  • Design P. 10kg / crt>2
  • Operating P. 7kg / cm2
  • Design T. 100"C
  • Operating T. 75*C
  • Material: SUS304 SUS316 SUS316L
  • Surface Finish: Acid-washed, Polished, and Other Unique Surface Finish
  • O-ring: EPDM, Viton, Silicone, NBR, Silicone + Teflon

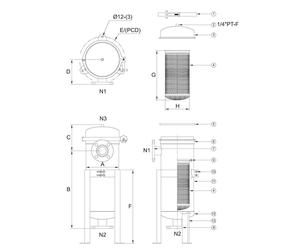

  1. Clamp
  2. Vent
  3. Top Cover
  4. Basket
  5. O-Ring
  6. Shell Flange
  7. Port Inlet
  8. Port Outlet
  9. Filter Bag Plate
  10. Bolt
  11. Shell
  12. Bottom Cover
  13. Support Leg
  • Water
  • Groundwater
  • Food Industries
  • Beverage industries
  • Environmental Industries
  • Electronic Industries
  • Machinery Oil
  • Electroplating industries
  • Petrochemical Industries
  • Pool
  • Unique Liquid Filtration
