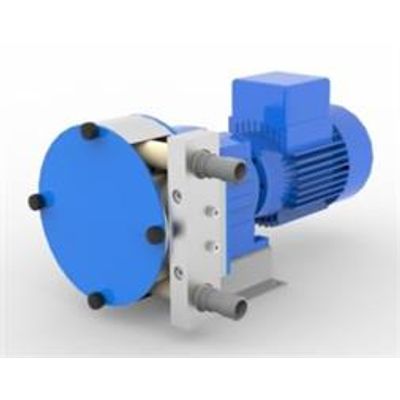

Stella - Model HC 15 -Low Pressure Hose Carrier Pump
FromStella O.M. sas
Low cost purchasing and maintenance. Self-priming and dry running capabilites. In line reversibility. Hig vacuum up to 8 meters. No valves, seat, seals, stator and rotor to wear. No contact between mechanical parts and pumped fluids. Pum body in Aluminum o Stainless steel. Rollers with for life lubricated bearings. Rollers with bearings protection optional. Double pump body option. Direct flanged gearbox on motor. Containment nad lubrication guides to extend tube life. Lubrication systems with grease o Lubex. Breakage tube control kit.
Most popular related searches
hose pumping
hose pump
steel roller
lubricant system
roller bearing
pump hose
bearing lubrication
fluid pump
- Delivery max Up to 325 liters per hour
- Head max Up to 1.2 bar
- Aspiration Up to 8 meters
- Free passage diameter13 mm
- Free passage hard solids diameter 3 mm
- Inlet – outlet Barb hose DN 20 mm
- Power 0.09 – 0.22 kW
- Voltage Mono – Triphase
- Dimensions H 175 x 455 x 220
- Weigth kg.
- Tube materials TPK – SIL
