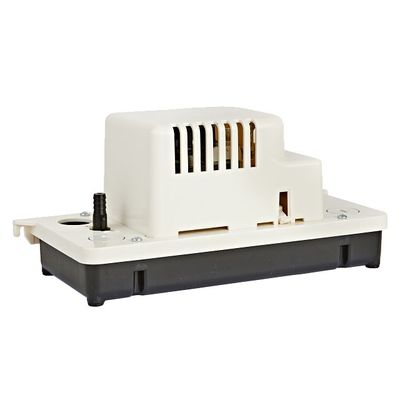

Little Giant - Model VCCA-20ULS Series -Low-Profile Condensate Pump
Little Giant’s VCCA-20ULS condensate pump features a low-profile design for automatic collection and removal of condensate from air conditioning, refrigeration, and dehumidification equipment when gravity drainage is not possible or practical due to limited space. It’s also suitable for high-efficiency oil and gas-fired condensing furnace and condensing boiler equipmet.
Most popular related searches
condensate pump
condensate pumping
float switch automatic
float switch
condensate draining
drain pump
air conditioning
gravity drainage
refrigerant air conditioning
boiler condensate
- 1/30 hp motor
- Float switch for automatic start/stop operation
- Safety switch
- 1/2-gallon tank capacity
- Motor thermal overload protection
- Low-profile condensate pump for small spaces
- 1/30 hp motor
- Float switch for automatic start/stop operation
- Safety switch
- 1/2-gallon tank capacity
- Motor thermal overload protection
- Low-profile condensate pump for small spaces
| Capacity | 80 gph @ 1` |
| Shut Off | 20` (6.1 m) / 115 V 17` (5.2 m) / 230 V |
| Max. Liquid Temp. | 120 °F (49 °C) |
| Discharge | 3/8" barbed (9.5 mm) |
| Impeller | Glass-filled Polypropylene |
| Electrical | 115 V, 60 Hz, 1.5 A 230 V, 50/60 Hz, 0.6/.05 A |
| Operation | Automatic |
