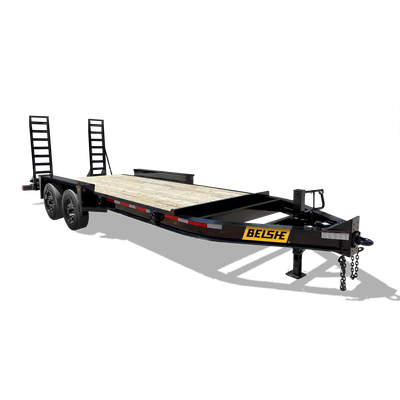

Belshe - Model BF9CX -Low-Profile Heavy Equipment Trailer

SHARE
The BF9CX represents the latest evolution in Belshe's low-profile heavy equipment trailers, designed with advanced commercial-grade I-beam construction for enhanced strength and durability. Engineered to accommodate larger deck widths and higher load capacities, this model is equipped with robust 9,000-pound axles and the industry's most resilient spring suspension. The BF9CX trailer features a streamlined design that incorporates numerous user-driven enhancements including shallower load angles for smoother loading and unloading, flush decks, and updated lighting options. The trailer offers extensive customization options, such as different wheel configurations and optional upgrades like gooseneck configurations and custom color finishes, to meet diverse hauling requirements. Technical specifications include an 8-inch I-beam main frame, a deck length of 16 feet, and an overall deck width of 82 inches. It comes with a 40-inch wood-filled dovetail with a 10-degree load angle and 6-foot spring-assisted ramps for maximum convenience.
Most popular related searches
hydraulic tilt trailer
profiler equipment
HDD drilling
HDD drill
protective equipment
drilling HDD
drilling equipment

The BF9CX is the Next Generation of Belshe low-profile heavy equipment trailers, featuring single-piece commercial-grade I-beam construction with larger deck widths and higher capacities than previous models. Running on 9K axles and the industry’s heaviest and most durable spring suspension, the BF9CX provides maximum strength and durability to protect your equipment investment. Our new streamlined design incorporates many customer-driven enhancements such as shallower load angles for easier loading/unloading, flush decks, updated lighting, and more wheel options. The BF9CX is ultra-customizable to meet your unique equipment needs.

Weight Rating: GVWR: 20,000 lbs.

Axles: (2) 9,000 lbs.

Frame: 8 in. I-Beam Main Frame

Brakes: Electric

Deck Length: 16 ft.

Deck Width: 82.0 in.

Dovetail: 40 in. Wood-Filled; 10 Degree Load Angle

Ramps: 6 ft. x 18 in. Spring-Assisted, Adjustable with Full-Width Ramp Rod and Stiff Arm Supports

Wheel: 17.5 in. 10-Bolt or 17.5 in. 8-Bolt

Gooseneck

Length

Width

Cargo Control

HDD Drill Kits

Custom Machine Packages

Custom Color

Polyurea Coating
