PT Limited - Model LS -Low Profile Shearbeam Load Cell

SHARE

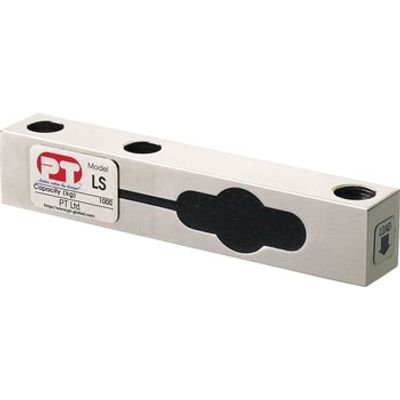

(50kg~10t Nickel Plated Tool Steel) Lower profile standard. The LS is one of the few true low profile shearbeam loadcells. If height is an issue with your application, consider a 1t shearbeam at only 24mm high, similar space savings are seen across the LS series. Known and recognised by its keyhole feature, the LS is used extensively in airport baggage scales and all types of above and in-ground platform weighing scales. With one of the worlds largest capacity spreads in a single model the LS is available from 50kg to 10t in 8 capacities.

Most popular related searches

Ultra low profile
Wide capacity range 50kg - 10t
Electroless nickel plated
Fully encapsulated
Matched mV/V and impedence

Ultra low profile platform scales
Space limitation installations
General industrial weighing

Nominal Capacity: 50kg ~ 10t
Signal output at capacity: 2mV/V ± 0.1%
Linearity Error: < 0.017% FSO
Non-Repeatability: < 0.010% FSO
Combined Error: < 0.023% FSO
Hysteresis: < 0.010% FSO
Creep/Zero Return(30 mins): < 0.023% / 0.017% FSO
Zero Balance: < 1.000% Capacity
Temperature Effect On Span/10ºC: < 0.010% FSO
Temperature Effect on Zero/10ºC: < 0.015% Capacity
Compensated Temperature Range: -10 ~ 50°C
Operating Temperature Range: -30 ~ 70°C
Service Load: 100% of Rated Capacity
Safe Load: 150% of Rated Capacity
Excitation +ve: RED
Signal +ve: GREEN
Sense +ve: BROWN
Ultimate Load: 300% of Rated Capacity
Input Resistance: 410O Nominal
Output Resistance: 352.2O Matched ± 0.2O
Insulation Resistance(bdg to grd)): < 5000 MO at 100V DC
Excitation Voltage (Rec): 5 ~ 15V AC/DC
Excitation Voltage (Maximum): 15V AC/DC
Storage Temperature Range: -50 ~ 70°C
Cable Type: 5.5mm, Screened, PVC Sheath 6 Core x 0.24mm² (24 AWG)
Cable Length: 3 Metres (50kg ~ 1t)
5 Metres (2.5t ~ 10t)
Material: Alloy Tool Steel
Finish: Electroless Nickel Plated
Excitation -ve: BLACK
Signal -ve: WHITE
Sense -ve: BLUE

Model: Capacity

LS-50kg: 50kg
LS-100kg: 100kg
LS-250kg: 250kg
LS-500kg: 500kg
LS-1t: 1t
LS-2.5t: 2.5t
LS-5t: 5t
LS10t: 10t

(Due to PT’s policy of continuous development, specifications and products offered are subject to change without notice.)
