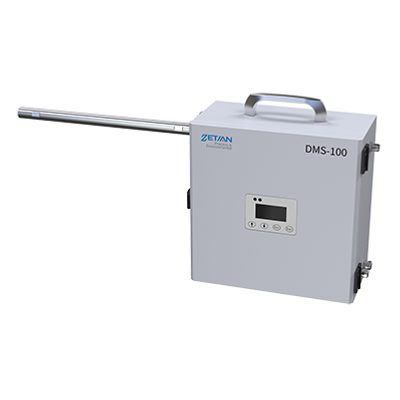

Zetian - Model DMS-100 -Low Range Extractive Dust Monitor

FromHangzhou Chunlai Technology CO., Ltd.

SHARE

DMS-100 Low Range Extractive Dust Monitor mainly adopts Laser Forward Scattering Measurement Technology, which is suitable for ultra-low emission occasions.

Most popular related searches

dust monitoring

emissions monitoring

dust extraction

laser dust monitoring

dust emissions monitoring

flue gas condenser

flue gas condensation

Adopt Laser Forward Scattering Measurement Technology to measure dust concentration with low detection limit
Use compressed air to purge laser and detector lens, clean flow path
Support double range switching
Easy to install

Applied to ultra-low emission occasions

Range: 0-10mg/m3, 50mg/m3 (customizable)
Drift: ±2%F.S.
Indication error: ±20%
Response time: 10s
IP grade: IP65
Detection limit: 0.1mg/m3
Flue gas humidity: relative humidity of 0-100%RH (non-condensing)
Flue gas pressure: -2KPa~1KPa
Temperature: ＜300℃
