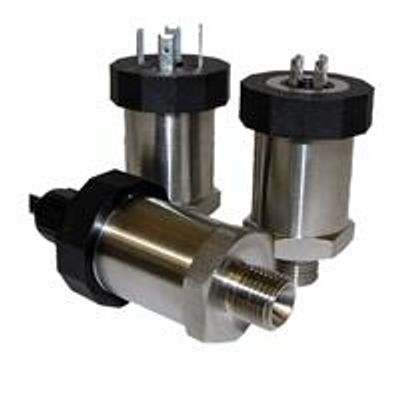

iCenta - Model IC-IMP-LR -Low Range Level / Pressure Transmitters
The IC-IMP-LR low range level / pressure transmitter has a piezo-resisitive silicon pressure sensor which is an oil filled isolated diaphragm. The sensor and housing are made from stainless steel with a choice of internal O ring seals to ensure the product is suitable for a wide range of applications. Every device is temperature compensated and calibrated and supplied with a traceable serial number and calibration certificate. The electronics incorporates a microprocessor based amplifier, this means there are no adjusting pots and therefore the electronics are very stable, especially in high vibration / shock applications.
Features of the IMP-LR include:
- Compact and rugged construction
- Stable, repeatable and reliable output
- Compensated ceramic technology
- Level ranges from 0.25 to 10 mWG
- Gauge reference
- Accuracy:
- Variety of outputs including mV, Volts and mA
- Cost effective for OEMs and end users
- High shock & vibration resistance
- Specials available on request
- Compact Construction
- High level of accuracy
- Shock & vibration resistance
- Laboratory / calibration references
- Environmental engineering
- Tank level measurement
- Storage tank monitoring
- Heating and ventilation
The IMP-LR is a low range industrial gauge level transmitter with ranges from 0.25 to 10 mWG @ 20 deg C, with a choice of outputs, process and electrical connections and different levels of accuracy making this one of the most diverse low pressure sensor products available.
Specification Detail of the IMP-LR Low Range Level Transmitter:
- Diameter : 26.5mm
- Material Body :Stainless Steel
- Flow Range : NA
- Accuracy :
- Operating Temp Range : -40 to 120°C
- Applicable Liquids : –
- Pressure Range : 25 to 600 mbar
- Outputs & Comms : 2/3 wire – 4-20mA/0-10V DC
- Insertion / Inline : Insertion
- Fluid Type : Liquid
- Power : 9-32V DC
- Approvals : CE
- Connection Type : G1/4 Male
