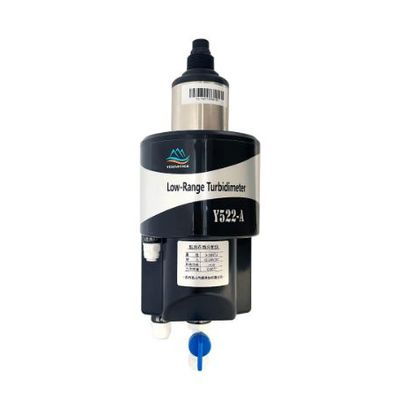

Yosemite - Model Y522-A -Low Range Turbidity Analyzer
Yosemitech Y522-A low range turbidity analyzer uses the standard 90° scattered light detection principle. Self-developed and tested structure, and real-time compensation algorithm to achieve high precision turbidity measurement. It equipped with a clean brush to meet the needs of long-term stable online monitoring.
Y522-A Online Turbidity Analyzer is a patented product with independent intellectual property rights tailored for online monitoring of drinking water quality. The turbidity analyzer has the characteristics of ultra-low turbidity detection limit, high precision measurement, long time maintenance free equipment, water saving work and digital output. The water quality monitoring device supports remote data monitoring on cloud platforms and mobile phones.
It can be widely used in online turbidity monitoring scenarios such as inlet and outlet of water plant, secondary water supply, pipe network end water, direct drinking water, membrane filtered water, swimming pool, surface water, etc
Adopting the principle of 90° scattering method
Self-developed optical path and detection structure, and real-time compensation algorithm to achieve high-precision turbidity measurement
With a cleaning brush to meet long-term stable online monitoring needs
Self-developed defoaming and measuring unit effectively eliminates water bubbles, ensures stable water inlet, and further improves measurement accuracy
Built-in calibration parameters, accurate calibration before delivery, ready for direct installation and use
- Model : Y522-A
- Measurement principle : 90° light scattering method
- Range : 0-10NTU,Other ranges can be customized
- Accuracy : ±0.01NTU or ±2%（Max）
- Resolution : 0.001NTU
- Working temperature : 0-50℃
- Power : 0.4W（non wiping), 1W（wiping）
- Suggested power supply : DC 12-24V,＞1A
- Sensor interface : Supports RS-485, MODBUS protocol
- Flow range : 180-500mL/min
- Sensor size : Φ54.6mm*193.5mm
- Maintain : Light window cleaning brush
- Pipe : Inlet: 2 Points PE Pipe, Drain: 3 Points PE Pipe
- Body material : Water channel：PC+ABS Sensor：316L+POM
- Water Plant Inlet and Outlet: Monitoring the turbidity at the entry and exit points of water treatment plants to ensure water quality meets safety standards.
- Secondary Water Supply: Ensuring the quality of water supplied through secondary distribution systems.
- Pipe Network End Water: Monitoring the water quality at the endpoints of a distribution network to detect any turbidity changes.
- Direct Drinking Water: Suitable for environments where water is consumed directly, ensuring it is safe and clear.
- Membrane Filtered Water: Used in systems where water is filtered through membranes, providing an additional layer of quality assurance.
- Swimming Pools: Ensuring the clarity and safety of pool water.
- Surface Water: Monitoring natural water bodies to detect pollution and maintain ecological balance.
