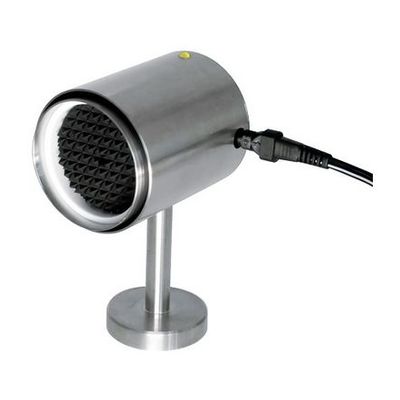

Advanced Energy Mikron - Model Mikron IRC 45 and IRC 150 -Low Temperature Calibration Source
Low Temperature Calibration Sources with Fixed Temperature Options from 45 to 150°C. Advanced Energy`s Mikron IRC calibration sources are small and easy to use. They’re ideal for benches and multiple, fixed temperature calibration set points. Minimum temperature deviation provides excellent temperature uniformity. Nine different types offer fixed temperature options from 45 to 150°C. High emissivity: 98%. Large aperture diameter: 50.8 mm (2 in).
The Mikron® IRC 45 to 150 calibration sources inspect pyrometer measurement accuracy at fixed temperature values. Precise control ensures constant and stable heating of the large emitter surface. High temperature uniformity with a maximum deviation of 0.2°C and high emissivity (98%) enable the exact verification of pyrometers with larger spot sizes.
The robust stainless-steel design guarantees operation under rough industrial environments. Compact dimensions enable you to check hard-to-access pyrometers at the measuring location.
- Operate in rough conditions
- Easily check hard-to-access pyrometers thanks to compact dimensions
- Enable precise temperature uniformity with precise control
- Short warm-up time
- High temperature stability
- Small dimensions
- Stainless steel housing
Measurement Specifications
- Temperature Range:
- Fixed temperature (depending on type):
- 45°C, 70°C, 75°C, 95°C, 100°C, 110°C, 120°C, 140°C or 150°C
- Temperature Uncertainty:
- 0.4°C for Tamb = 10 to 40°C (IRC 45 to 120)
- 0.6°C for Tamb = 0 to 10°C (IRC 45 to 120)
- 0.5°C for Tamb = 10 to 40°C (IRC 140 to 150)
- 0.7°C for Tamb = 0 to 10X (IRC 140 to 150)
- Temperature Resolution: 0.2°C
- Stability: 0.1 °C
- Source Non-Uniformity: 0.2°C (central area 0 45 mm)
- Heated Emitter Shape: Thermally uniform plate with pyramid texture
- Aperture Diameter: 50.8 mm (2 in)
- Emissivity: 0.98 ±0.004 at 2 to 5.4 pm; 8 to 14 pm
- Foremissivities of other wavelengths, temperature correction tables are available
- Standard Calibration Method: Contact-thermometric
- Warm-Up Time: Maximum 5 (IRC 45) up to 30 minutes (IRC 150)
- Status LED:
- Green: warm-up
- Orange: ready for operation
- Red: overheating
Environmental Specifications
- Operating Ambient Temperature: 0 to 40°C (32 to 104°F), temporary (2 min) up to 70°C
- Storage Temperature: 0to70°C(32to158°F)
- Operating Humidity: 10 to 85%, non-condensing conditions
- HxWxD: 64.5 x 81.0 x 133.5 mm (-2.54 x 3.19 x 5.26 in)
- Weight: 0.9 kg (-1.88 lb)
- Protection Class: IP50 (EN 60529)
- CE Certified: Yes
Electrical
- Power Requirements: 24 VDC, maximum 1 A
