Terberg - Model OmniDEL (E) -Low Voltage, Electric Bin Lift
The OmniDEL Electric is a low voltage, electric bin lift based on a proven design offering robust build, safe operation & minimal maintenance. The OmniDEL Electric shares its mechanical design components, efficiency saving features and safety enhancing benefits with the standard OmniDEL but requires only 24v chassis electrical power for operation.
The OmniDEL Electric has been proven to save between 8 to 14% in the fuel used on normal RCV collection rounds, depending on driver behaviour, bin to bin distance, distance to tip and other variables.
Environmentally friendly performance comes as standard and the lift is designed to be compatible with future developments in electric & hybrid RCV technologies
Practically silent operation is possible with the OmniDEL Electric producing less than 57 dB(A) of noise, it can even operate without the engine running.

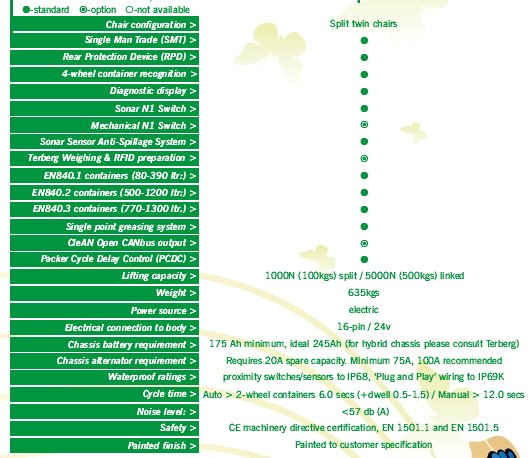

- Application : Domestic & Mixed
- Lift Config : Split Twin Low Level
- Mode : Auto
- Auto Gather* : YES
- RPD¹ : YES
- 4-wheel container recognition : YES
- Diagnostic display : YES
- N1 Switch : Sonar
- Shake function : Sonar Sensor Anti-Spillage
- TW&ID Prep² : Option
- Single Point Greasing System : YES
- CANbus output : Option
- PCDC³ : YES
- Containers : EN840.1 EN840.2 EN840.3
- DIN Arms : NO
- Bammens Arms : NO
- Paladin Containers : NO
- Lifting Capacity (kg) : 100 split 500 trade
- Total weight (kg) : 635
- Power : Electric
- Electrical Connection to body : 16-pin / 24v DC
- Chassis battery requirement : 175Ah min., ideal 245Ah
- Chassis alternator requirement : Req. 20A spare capacity. Min 75A, 100A recommended
- Ingress Protection rating : IP68 & IP69K
- Cycle Time (secs) : Auto=6 Man=12
- Noise (dbA) : <57
- Safety : CE Machinery Directive, EN1501.1 & EN1501.5
- Painted finish : Customer specification
