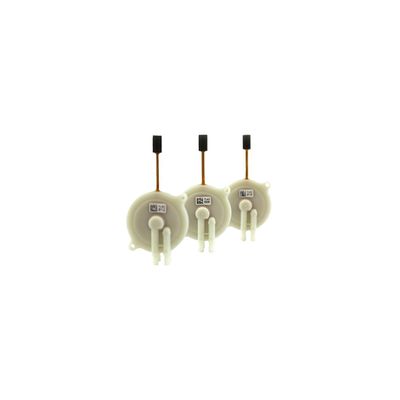

LT Series - Long Lifetime Micropump Disc Pump
The LT Series Disc Pump – long lifetime micropump has been optimised for long service life, delivering in excess of 5,000 hours continuous operation under the most demanding conditions. Over 5,000 hours, cycling 20,000 times per second, LT Series pumps clock up more than 20 cycles for every year the universe has existed.
All of our pump designs have two pumping chambers. These are configured at the point of manufacture to be in series for higher pressure applications, or parallel for higher flow.
We offer three pump product lines: the entry-level BL Series, which strikes a balance between performance and cost; the XP Series with our highest performance and widest temperature range to suit the most demanding applications; and the LT Series, engineered for applications demanding long operational life in excess of 5,000 hours.
- Long Service Life
- Exceptional pressure and flow
- Silent, vibration-free operation
- Ultra-fast millisecond response
- RoHS compliant
- Lightweight, compact form
- High-precision controllability
- True pulsation-free flow
- Infinite turn-down ratio
- Maintenance free
LT Series – LT-S2-023
- Pressure Range: 0 – 270 mBar
- Flow Range: 0 – 0.55 L/min
- Vacuum Range: 0 – 220 mBar
LT Series – LT-P2-024
- Pressure Range: 0 – 150 mBar
- Flow Range: 0 – 1.20 L/min
- Vacuum Range: 0 – 150 mBar
Operational
- Temperature Range: -25 to 40 °C
- Humidity Range: 0 to 95 % RH
- Pumping Medium: Air
- Noise Level: <10 dB
- Control Precision: <0.1 %
- Turn-down Ratio: Infinite
Mechanical
- Size: 29 dia. x 11 mm
- Weight: 5 g
