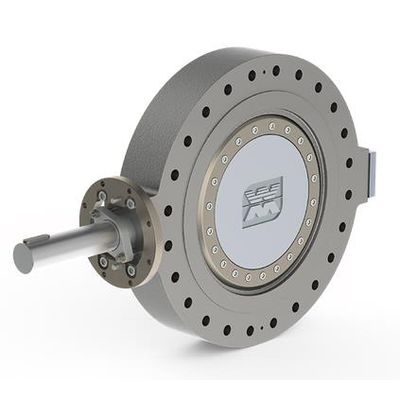

Quadax - Lug Type Butterfly Valve
In the lug type with threaded flange holes, the valve is bolted directly onto the pipe flanges on both sides. It has the shortest overall length and can thus be installed in the pipeline, saving a lot of space.
Most popular related searches
butterfly valve
lug type butterfly valve
pipe flange
lug butterfly valve
PTFE butterfly valve
steel butterfly valve
flanged pipe
PTFE valve

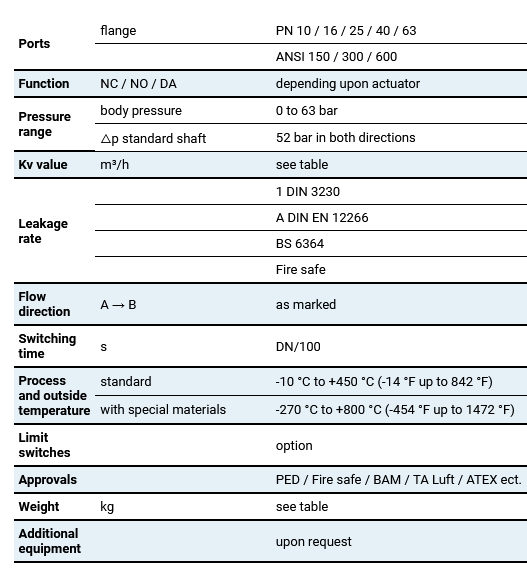

- Standard: -10 °C up to +450 °C (-14 °F up to 842 °F)
- With special materials: -270 °C up to +800 °C (-454 °F up to 1472 °F)
- Butterfly valve: 4-offset
- Pressure range: PN 0-63 bar
- Nominal diameter: DN 50-1800 mm
- Connection: flange
- Housing materials: Steel, stainless steel,
- Special materials: (Duplex, Inconel, Bronze)
Seat materials
- Inconel
- Others on request
Sealing materials
- Graphite / stainless steel, Inconel, stainless steel, PTFE
