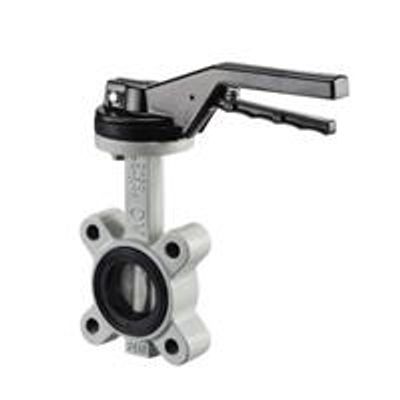

Oventrop - Model PN 16 -Lugged Butterfly Valves

OVENTROP-Lugged butterfly valve made of nodular cast iron, PN 16.  Application: BS 5155 Water between -10 °C and +110 °C and general applications. Not suitable for gas and hydrocarbons.  Extended neck for insulation purposes.  Connection for actuators according to ISO 5211.  Body: GJS-500 (GGG-50) nodular cast iron Stem: AISI420 stainless steel Disc: CF8M AISI316 stainless steel Liner: EPDM.  Lugged pattern, lever operated.
