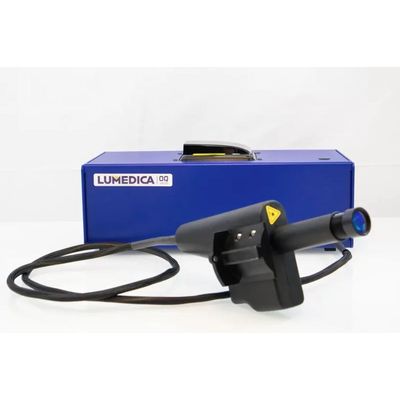

Lumedica - Model OQ Series -LabScope
With the same compact design and affordable price, the OQ LabScope 3.0 is a game-changing imaging solution for your lab. Spectral-Domain Optical Coherence Tomography or SD-OCT uses light to image layers of a sample. OCT has many applications in life science research and industry. Lumedica’s redesigned compact and affordable OCT engine makes OCT accessible to scientists.
| OQ LabScope 2.0 | OQ LabScope 3.0 | OQ LabScope 3.0 /R | OQ LabScope 3.0/XR | OQ LabScope 3.0/SX | OQ StrataScope | |
| Center Wavelength | 840 nm | 840nm | 850 nm | 850 nm | 880 nm | 1310 nm |
| Depth Resolution Air/Tissue | 8/6μm | 8/6μm | 5/3μm | 5/3μm | 3/2μm | 14/10μm |
| Transverse Resolution | 18 μm | 18 μm | 18 μm | 18 μm | 15 μm | 20 μm |
| Linear Scan Range | 7 mm | 7mm | 7mm | 7mm | 7mm | 8mm |
| A-Scan Line Rate | 13 kHz | 34 kHz | 34 kHz | 80 kHz | 80 kHz | 16 kHz |
| B-Scan Image Rate | 10/sec | 22/sec | 22/sec | 50/sec | 50/sec | 11/sec |
| Base Price | $9,995 | $11,995 | $19,995 |
System size (w/d/h): 19 x 33 x 15 cm3
Scanner size: 4.1 x 17.2 x 6.7 cm3
System weight: 2.7 kg
The OQ Labscope is about the size of a shoebox, so it won’t crowd your laboratory — or require a special cart.
Affordable
The OQ LabScope price is a fraction of any other OCT system. Now, finally, many researchers will be able to afford this technology.
Accurate
The OQ Labscope generates 512 x 512 pixel images, matching the performance of OCT systems costing three times as much.
Easy to Use
Focus on science, not on setup. The software is simple to learn, so you can generate images straight out of the box.
