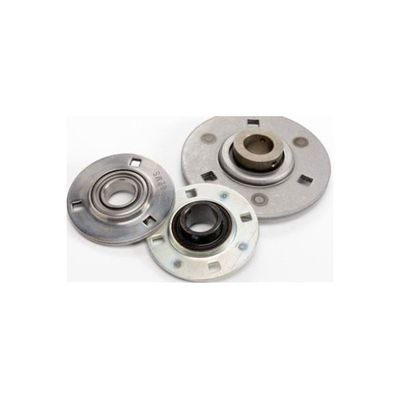

Lutco - Centerflange Housed Bearing Assembly (FL)
FromLutco, Inc
Axial space constraints can often be overcome with Lutco centerflange assemblies. These units are designed with the flange positioned at the center of the bearing width. Centerflanges consist of a Lutco semi-precision bearing or precision bearing seated between two welded flangettes.
Most popular related searches
- ID: .5 to 1.25 in.
- Available in 2-bolt and 3-bolt round configurations
- Ideal in tight axial space arrangements
- Intended for applications which have little or no shaft misalignment (4° or less)
All Housed Bearing Assemblies share the following features:
- Inch dimensions
- Moderate Loads
- Various bore configurations available
- Zinc plated with clear or yellow dichromate for corrosion protection
- Alternate plating options also available
- Bearings are supplied prelubricated
- All units are non-relubricatable
- Limiting Speed is 1200 RPM (using Lutco bearing)
- Higher speeds available with precision bearings
